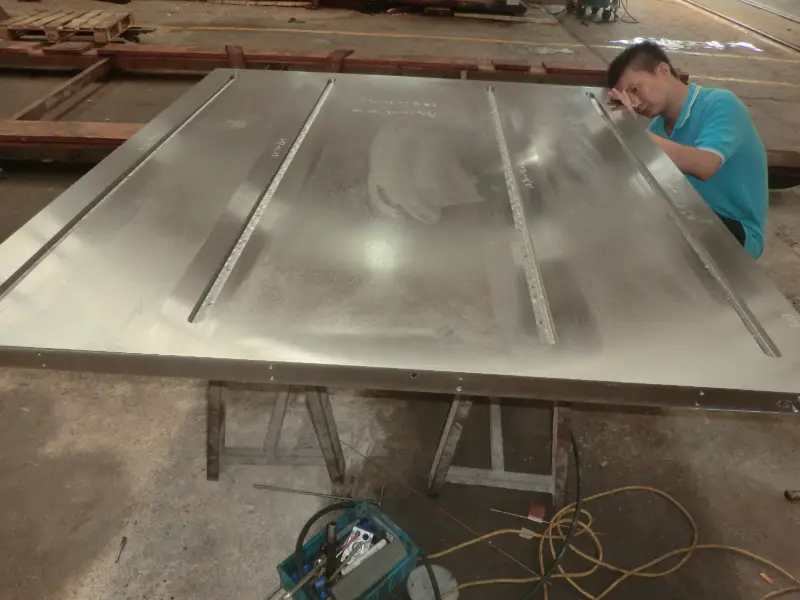

API Spec 2H Gr50 Offshore Steel Plate

API Spec 2H Gr50 Offshore Steel Plate Introduction

API Spec 2H Grade 50 is a structural steel plate specifically designed for offshore platforms, jack‑up rigs, and marine structures. The grade is defined by the American Petroleum Institute under specification API 2H. It offers a minimum yield strength of 50 ksi (345 MPa) in thicknesses up to 4 inches, combined with excellent weldability and low‑temperature notch toughness. The steel is typically supplied in normalized, quenched and tempered, or thermomechanical controlled processed (TMCP) condition to meet stringent requirements for through‑thickness ductility and Charpy impact properties at temperatures as low as -40°C. With a carefully controlled chemical composition (< 0.18% C, microalloyed with Nb, V, and Al), it achieves fine grain size and consistent properties across the plate.

• Offshore structural applications demanding high strength and resistance to brittle fracture
• Suitable for welding by all common methods with proper preheat and interpass control
• Meets requirements for Z‑35 through‑thickness ductility when so ordered

API Spec 2H Gr50 Offshore Steel Plate Chemical Composition – API 2H Grade 50

Ladle analysis limits according to API Spec 2H. Maximum carbon equivalent (CE) is typically controlled to <0.40% for good weldability. Microalloying with Al, Nb, and V ensures fine grain size and high toughness.

• All values are maximum unless a range is given.
• Through‑thickness ductility requirements may necessitate tighter S content.

API Spec 2H Gr50 Offshore Steel Plate Thermal & Electrical Physical Properties – API 2H Grade 50

These data are typical for low‑carbon structural steel at room temperature, unless otherwise noted. Actual properties may vary slightly with processing condition.

• Values are for guidance in design calculations.

API Spec 2H Gr50 Offshore Steel Plate Mechanical Properties – API 2H Grade 50

Minimum specified values for tensile and impact tests. Testing is conducted on specimens taken from transverse to the rolling direction.

• Yield strength applies up to 100 mm thickness; for thicker plates a slight reduction may be allowed by agreement.
• Charpy V‑notch impact test temperature is typically -40°C (or as specified).

API Spec 2H Gr50 Offshore Steel Plate Identical or Fully Equivalent Material Standards & Grades

API Spec 2H Gr50 Offshore Steel Plate Application Introduction

API 2H Grade 50 plate is engineered for primary structural members in offshore constructions. Its combination of strength, toughness, and weldability makes it suitable for critical load‑bearing components exposed to low‑temperature and fatigue loading.

• Frequently specified in accordance with API RP 2A‑WSD for fixed offshore platforms.
• Z‑quality (Z25, Z35) can be ordered to resist lamellar tearing in highly restrained joints.

Product Applications: Jacket structures and bracing members, Deck plating and module support frames, Piles, pile sleeves, and conductors, Helicopter decks and boat landings, Mooring and turret components

Processed into products: Tubular node joints (K, Y, T‑connections), Stiffened panels for hull and deck, Lifting padeyes and trunnions, Transition pieces between foundation and tower, Crown plates and base plates for jack‑up legs

Application industries: Offshore oil & gas exploration and production, Offshore wind energy (turbine foundations, transition pieces), Marine shipbuilding and heavy lifting barges, Civil infrastructure (bridges, piers, heavy‑duty towers)

API Spec 2H Gr50 Offshore Steel Plate Closely Related or Similar Substitute Materials
