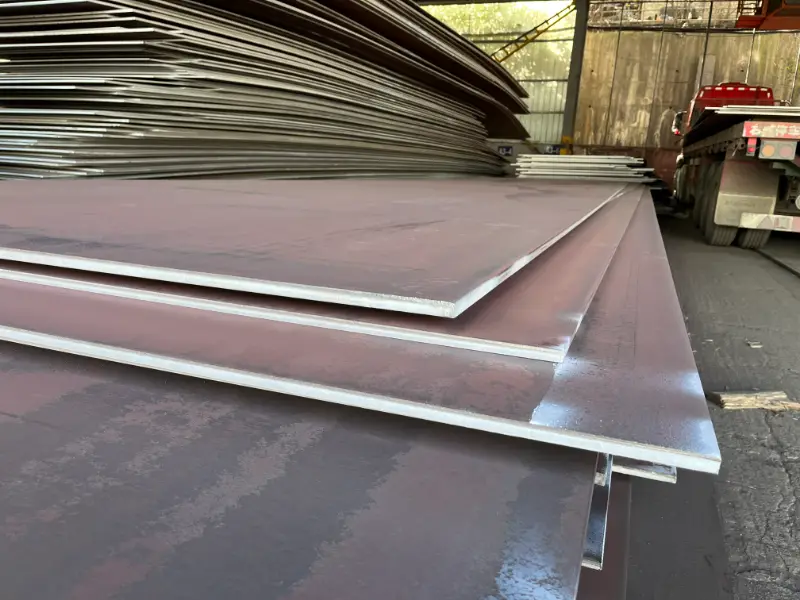

ASTM A588 Grade A (A588GRA) Weathering Steel Plate
ASTM A588 Grade A (A588GRA) Weathering Steel Plate - Properties, Equivalents & Applications
Comprehensive technical datasheet for ASTM A588 Grade A (A588GRA) weather-resistant steel plate, including chemical composition, mechanical and physical properties, equivalent grades, and application guidance.
Hot rolling, normalizing (optional), cold forming, welding, machining
- Phone : +8618037372205
- Email : [email protected]
- WhatsApp: Contact via Whtsapp
- WeChat: +8618037372205
ASTM A588 Grade A Weathering Steel Plate Introduction
ASTM A588 Grade A (also designated A588GRA) is a high-strength low-alloy (HSLA) structural steel with enhanced atmospheric corrosion resistance – commonly referred to as weathering steel. Under alternating wet and dry conditions, it develops a dense, adherent oxide patina that protects the base metal from further corrosion, often eliminating the need for painting. This grade is specified for welded, bolted, or riveted construction in bridges, buildings, and other structures where weight saving and durability are critical. The steel combines a minimum yield strength of 50 ksi (345 MPa) with good weldability and notch toughness. Key alloying elements – copper, chromium, nickel, and vanadium – provide the weathering characteristics. Plates are typically supplied in the as-rolled condition and can be formed, machined, and welded using common practices. ASTM A588 Grade A is recognized worldwide and has direct counterparts in EN 10025-5 (S355J2W), JIS G3114 (SMA490AW), and other international standards.
ASTM A588 Grade A Weathering Steel Plate Chemical Composition
The nominal chemical composition according to ASTM A588 Grade A is given below. These alloying elements, particularly copper, chromium, and nickel, contribute to the formation of a tightly adherent oxide layer that resists atmospheric corrosion. The maximum limits for carbon, phosphorus, and sulfur ensure good weldability and toughness.
| Chemical Element | Standard Value (max or range) | Remarks |
|---|---|---|
| Carbon (C) | 0.19 % max | |
| Manganese (Mn) | 0.80 - 1.25 % | |
| Phosphorus (P) | 0.04 % max | |
| Sulfur (S) | 0.05 % max | |
| Silicon (Si) | 0.30 - 0.65 % | |
| Nickel (Ni) | 0.40 % max | |
| Chromium (Cr) | 0.40 - 0.65 % | |
| Copper (Cu) | 0.25 - 0.40 % | |
| Vanadium (V) | 0.02 - 0.10 % |
ASTM A588 Grade A Weathering Steel Plate Thermal and Electrical Physical Properties
These physical properties are typical for ASTM A588 Grade A weathering steel and are suitable for most engineering calculations. They are not specification requirements but representative values determined from published data for low-alloy steels.
| Property | Typical Value | Unit | Test Condition / Remarks |
|---|---|---|---|
| Density (ρ) | 7850 | kg/m³ | Room temperature |
| Modulus of Elasticity (E) | 200 | GPa | Room temperature |
| Shear Modulus (G) | 77 | GPa | |
| Poisson's Ratio (ν) | 0.30 | - | |
| Coefficient of Thermal Expansion (α) | 11.7 (6.5) | 10⁻⁶ / °C (10⁻⁶ / °F) | 20–100 °C (68–212 °F) |
| Thermal Conductivity (λ) | 42.9 (24.8) | W/m·K (Btu/ft·h·°F) | At 20 °C |
| Specific Heat Capacity (c) | 448 (0.107) | J/kg·K (Btu/lb·°F) | At 20 °C |
| Electrical Resistivity (ρₑ) | ~ 0.20 (2.0) | µΩ·m (µΩ·cm) | Room temperature, approximate |
ASTM A588 Grade A Weathering Steel Plate Mechanical Properties
Tensile properties are specified for plates up to 4 in. (100 mm) in thickness. The steel exhibits a yield strength of at least 50 ksi (345 MPa) and an ultimate tensile strength of 70 ksi (485 MPa), with good ductility. Bend tests are mandatory for material order with forming requirements.
| Property | Standard Requirement | Unit | Test Condition / Thickness Range |
|---|---|---|---|
| Yield Strength (ReH) | ≥ 50 (345) | ksi (MPa) | t ≤ 4 in. (100 mm) |
| Tensile Strength (Rm) | ≥ 70 (485) | ksi (MPa) | t ≤ 4 in. (100 mm) |
| Elongation (A), 8 in. (200 mm) gauge | ≥ 18 | % | t ≥ 0.5 in. (12.5 mm) |
| Elongation (A), 2 in. (50 mm) gauge | ≥ 21 | % | t ≥ 0.5 in. (12.5 mm) |
| Bend Test (Mandrel Diameter) | 1.5 t (no cracks) | t ≤ 1 in. (25 mm) | |
| Bend Test (Mandrel Diameter) | 2.5 t (no cracks) | 1 in. < t ≤ 2 in. (50 mm) | |
| Bend Test (Mandrel Diameter) | 3.5 t (no cracks) | 2 in. < t ≤ 4 in. |
ASTM A588 Grade A Weathering Steel Plate Internationally Equivalent Standards and Replaceable Grades
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| Europe | EN 10025-5 | S355J2W (1.8965) | Similar weathering steel, yield 355 MPa, composition close but with slight differences in Cu/Cr/Ni. |
| Japan | JIS G3114 | SMA490AW | Comparable grade with similar strength and corrosion resistance, often used in Japan. |
| China | GB/T 4171 | Q355GNH | Equivalent weathering steel with slightly higher yield (355 MPa); check trace element variations. |
| ISO | ISO 4952 | S355W | Weathering steel for structural use, broadly corresponding to A588 Grade A properties. |
ASTM A588 Grade A Weathering Steel Plate Application Introduction
ASTM A588 Grade A weathering steel is designed for load-bearing outdoor structures that are periodically wet and dry. Its adherent patina eliminates the need for painting in many environments, reducing lifetime maintenance costs. The steel is not recommended for prolonged immersion or buried applications without protective coatings. Typical industries and products include:
Product Applications: Weathering Steel Plates for Bridges, Structural Beams and Columns, Corrosion-Resistant Façade Panels, Rolled Shapes for Industrial Buildings, Railcar Bodies and Hopper Cars, Shipping Containers
Processed into products: Bridge girders, stringers, and diaphragms, Building framework (columns, beams, trusses), Transmission tower legs and crossarms, Outdoor sculptures and artworks, Container corner posts and frames, Railway car sides and underframes
Application industries: Civil Engineering & Infrastructure, Bridge Construction, Architectural Facades & Canopies, Railway Vehicle Manufacturing, Container & Shipping Industry, Transmission & Telecommunication Towers
ASTM A588 Grade A Weathering Steel Plate Similar Weathering / HSLA Steel Grades for Potential Substitution
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| USA | ASTM A588 | Grade B (A588GB) | Slightly different Cu and Ni limits; often dual-certified with Grade A. |
| USA | ASTM A242 | Type 1 | Older weathering steel standard; lower yield strength (50 ksi) but similar corrosion resistance. |
| USA | ASTM A709 | Grade 50W | Weathering grade for bridges, very similar to A588 Grade A. |
| EU | EN 10025-5 | S355K2W | Higher toughness variant, values may exceed A588 Grade A, suitable in demanding climates. |
| JPN | JIS G3114 | SMA570W | Higher strength weathering steel, suitable where weight reduction is prioritized. |
Notes:
Atmospheric Corrosion Performance: When exposed to alternating wet/dry cycles, A588 Grade A forms a dense, self-healing oxide layer (patina) that slows further corrosion. In environments with high chloride (coastal) or heavy industrial pollution, periodic washing or a protective coating may be required.
Weldability: The steel is readily weldable using common processes (SMAW, GMAW, FCAW, SAW) with low-hydrogen electrodes. Preheating is not usually required for thicknesses < 1.5 in., but refer to AWS D1.1 for specific procedures.
Forming: Good cold-bending properties; hot forming may alter the patina formation; re-weathering is possible after fabrication.
Certification: Material can be supplied with mill test reports (MTRs) showing chemical and mechanical properties. Dual certification with A588 Grade B or A709 Grade 50W is common upon request.
