ASTM A53 Grade B ERW Pipe: Comprehensive Material Data & Applications
Detailed material analysis of ASTM A53 Grade B ERW pipe including chemical composition, mechanical and thermal properties, international equivalents, and application guidelines.
Electric resistance welding (ERW), cold forming, hot rolling, cold drawing (for tighter tolerances), galvanizing, threading.
- Phone : +8618037372205
- Email : [email protected]
- WhatsApp: Contact via Whtsapp
- WeChat: +8618037372205
ASTM A53 Grade B ERW Pipe Introduction

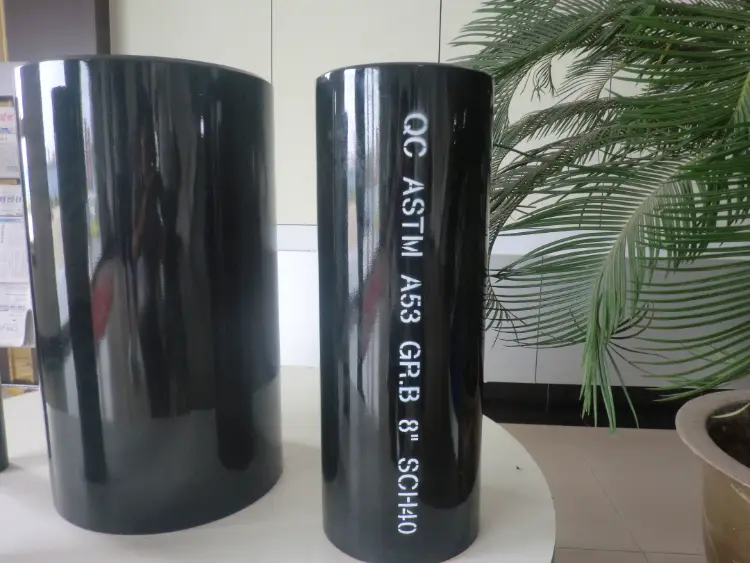

ASTM A53 Grade B ERW pipe is a carbon steel pipe manufactured by the electric resistance welding (ERW) process, conforming to the ASTM A53/A53M standard. It is widely used for pressure and mechanical applications such as steam, water, gas, and air lines. Grade B features a higher carbon content compared to Grade A, providing higher strength. The material is weldable, formable, and suitable for coiling, bending, and flanging. Typical delivery condition is in the as-welded or normalized condition, with plain, beveled, or threaded ends.
ASTM A53 Grade B ERW Pipe Chemical Composition
Chemical composition limits according to ASTM A53/A53M for Grade B. All values are maximum unless a range is indicated. For ERW pipe, the composition is based on the steel strip or plate used. Elements such as Cu, Ni, Cr, Mo, and V are supplementary requirements and may not be reported unless specifically ordered.
| Element | Standard Value (max, %) | Remarks |
|---|---|---|
| Carbon (C) | 0.30 | Ladle analysis |
| Manganese (Mn) | 1.20 | Ladle analysis |
| Phosphorus (P) | 0.050 | 0.050% max |
| Sulfur (S) | 0.045 | 0.045% max |
| Copper (Cu) a | 0.40 | Optional, when copper steel is specified |
| Nickel (Ni) a | 0.40 | Optional, when copper steel is specified |
| Chromium (Cr) a | 0.40 | Optional, when copper steel is specified |
| Molybdenum (Mo) a | 0.15 | Optional, when copper steel is specified |
| Vanadium (V) a | 0.08 | Optional, when copper steel is specified |
| Total of five elements (Cu, Ni, Cr, Mo, V) | 1.00 | When any of these is specified |
ASTM A53 Grade B ERW Pipe Thermal and Electrical Physical Properties
The following physical properties are typical for ASTM A53 Grade B carbon steel at room temperature and are not mandatory requirements of the standard. Actual values may vary slightly depending on composition and heat treatment.
| Property | Typical Value | Unit | Condition |
|---|---|---|---|
| Density (ρ) | 7.85 | g/cm³ | 20 °C |
| Elastic Modulus (E) | 205 | GPa | 20 °C, typical for carbon steel |
| Shear Modulus (G) | 80 | GPa | 20 °C, calculated from E and ν |
| Poisson's Ratio (ν) | 0.29 | - | 20 °C |
| Thermal Expansion Coefficient (α) | 11.7 | 10⁻⁶/K | 20–100 °C |
| Thermal Conductivity (λ) | 50.7 | W/(m·K) | 20 °C, typical |
| Specific Heat Capacity | 486 | J/(kg·K) | 20 °C |
| Electrical Resistivity (ρₑ) | 0.159 | µΩ·m | 20 °C, typical |
ASTM A53 Grade B ERW Pipe Mechanical Properties
Mechanical properties required by ASTM A53 Grade B. These values apply to the finished pipe in the as-welded condition. Tensile testing is performed on full-section specimens or strip specimens; elongation is measured over a 2 in. (50 mm) gauge length. Bend tests are conducted for ERW pipe.
| Property | Required Value | Unit | Test Condition |
|---|---|---|---|
| Tensile Strength (Rm) | ≥ 415 (≥ 60,000) | MPa (psi) | Longitudinal strip or full-section tensile test |
| Yield Strength (ReH) | ≥ 240 (≥ 35,000) | MPa (psi) | Longitudinal strip or full-section tensile test |
| Elongation (A) | To be calculated per formula: e = 625,000 * A0.2 / U0.9, where A is cross-sectional area, U is specified tensile strength in psi; for SI units: e = 1,944 * A0.2 / U0.9 | % in 2 in. or 50 mm | Longitudinal test. Minimum values not directly listed; see standard. Typical elongation for Grade B ~20-25% for thin walls. |
| Bend Test | No cracks or openings in the weld after flattening to a specified distance between plates (based on diameter and wall thickness) | - | For pipe ≤ NPS 2; full-section flattening test or bend test per standard. |
ASTM A53 Grade B ERW Pipe Fully Equivalent Material Standards and Replaceable Grades
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| USA (International) | API 5L | Grade B | Similar chemistry and mechanical properties; often used interchangeably for line pipe. Check dimensional ranges and supplementary requirements. |
| China | GB/T 3091 | Q235B | Comparable strength and carbon equivalent; used for welded pipe in structural and pressure applications. |
| Europe | EN 10255 | S195T | Non-alloy steel tubes suitable for threading; yield and tensile strength closely match A53 Gr. B. |
| Japan | JIS G3452 | SGP (Grade B) | Carbon steel pipe for ordinary piping; mechanical properties are approximately equivalent. |
| India | IS 1239 (Part 1) | Steel tubes (Class B) | Similar strength level for screwed pipes. |
| International | ISO 65 | Grade B | Carbon steel tubes suitable for screwing, equivalent to A53 Gr. B. |
ASTM A53 Grade B ERW Pipe Application Introduction
ASTM A53 Grade B ERW pipe is a versatile carbon steel product employed in a wide range of fluid transport and structural applications. Its favorable combination of strength, weldability, and cost makes it a standard choice for commercial and industrial systems. It can be cut, welded, threaded, and grooved with common shop tools.
Product Applications: Straight pipes with plain, beveled, or threaded ends, Pipe spools and prefabricated assemblies, Grooved-end pipe for Victaulic® style couplings, Hot-dipped galvanized pipe for outdoor and corrosive environments, Black pipe for indoor dry applications, Pipe piles and bearing piles, Fencing posts and structural signage supports
Processed into products: Pipe fittings (elbows, tees, reducers, caps) when fabricated from pipe, Boiler tubes and headers (in low-pressure systems), Compressed air distribution laterals, Handrails and guardrails, Conveyor rollers and idler frames, Piping supports, brackets, and hangers, Mast arms for traffic signals, Fire department connections and standpipes, Water well casings, Steel bridge bearings and bracing
Application industries: Oil & Gas (downstream and distribution piping), Power Generation (cooling water, steam lines), Construction and Civil Engineering (structural columns, piling), Water Treatment and Distribution, Fire Protection (sprinkler systems), Chemical Processing, HVAC (chilled water, condenser water), Agriculture (irrigation systems), Mining (slurry and water lines), Shipbuilding (low-pressure services)
ASTM A53 Grade B ERW Pipe Similar / Alternative Material Recommendations
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| USA | ASTM A106 | Grade B | Seamless carbon steel pipe for high-temperature service; slightly higher tensile strength; no welding seam. |
| USA | ASTM A135 | Grade B | Electric-resistance-welded steel pipe; similar properties but primarily for fire protection and light-weight structures. |
| USA | ASTM A139 | Grade B | Electric-fusion (arc) welded pipe for water, gas, and oil; higher alloying options but base grade comparable. |
| China | GB/T 3091 | Q345B | Higher strength carbon steel; can be a direct upgrade where higher strength is needed. |
| Europe | EN 10210 | S235JRH | Hot finished structural hollow sections; similar strength but for structural use, not pressure rated. |
Notes:
Important ordering considerations: When specifying ASTM A53 Grade B ERW pipe, the user should clearly state the nominal size, wall thickness schedule or weight, end finish, and any supplementary requirements such as copper-bearing steel, galvanizing, or hydrostatic testing. The standard allows for both seamless and welded pipes; ERW is the most common welded type. For high-temperature service, ASTM A106 Grade B seamless pipe is preferred. ASTM A53 pipe is not intended for ultra-high pressure or severe cyclic conditions without additional testing. Compliance with ASTM A53 includes mandatory hydrostatic and nondestructive electric tests for the weld seam unless otherwise agreed.
