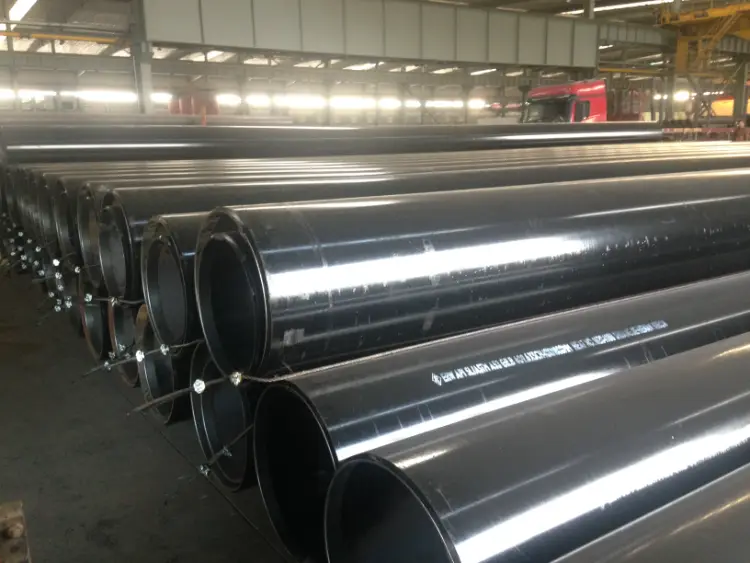

ASTM A53 Grade A Carbon Steel Pipe
ASTM A53 Grade A Carbon Steel Pipe for Low-Pressure Fluid Conveying & Structural Use
Detailed reference for ASTM A53 Grade A seamless and welded carbon steel pipe, covering chemical composition, mechanical & physical properties, global equivalents, and typical applications in general piping, structural supports, and low-pressure fluid transport.
Hot rolling, cold drawing, welding (ERW/SAW), heat treatment (normalizing, stress relieving) if required
- Phone : +8618037372205
- Email : [email protected]
- WhatsApp: Contact via Whtsapp
- WeChat: +8618037372205
ASTM A53 Grade A Carbon Steel Pipe Introduction
ASTM A53 Grade A is a carbon steel pipe grade specified under ASTM A53/A53M standard, designed for mechanical and pressure applications as well as for ordinary uses in steam, water, gas, and air lines. It is supplied in both seamless and welded forms, with a focus on weldability, moderate strength, and cost-effectiveness. The material features a maximum carbon content of 0.25% and manganese up to 0.95%, providing a balanced combination of ductility and tensile strength. Typically delivered in hot-rolled or cold-expanded condition with a minimum yield strength of 205 MPa (30 ksi) and tensile strength of 330 MPa (48 ksi), Grade A is preferred in low-pressure fluid transport systems and general structural applications where reliability and affordability are essential.
ASTM A53 Grade A Carbon Steel Pipe Chemical Composition
The chemical composition of ASTM A53 Grade A is tailored to ensure good weldability and basic corrosion resistance. Microalloying elements such as chromium, nickel, and molybdenum are residual from steelmaking and kept at low levels to avoid adverse effects on weldability and toughness.
| Element | Standard Value (max, %) | Remarks |
|---|---|---|
| Carbon (C) | 0.25 | Heat analysis |
| Manganese (Mn) | 0.95 | Heat analysis |
| Phosphorus (P) | 0.05 | Heat analysis |
| Sulfur (S) | 0.045 | Heat analysis |
| Copper (Cu) | 0.40 | Residual |
| Nickel (Ni) | 0.40 | Residual |
| Chromium (Cr) | 0.40 | Residual |
| Molybdenum (Mo) | 0.15 | Residual |
| Vanadium (V) | 0.08 | Residual |
ASTM A53 Grade A Carbon Steel Pipe Thermal and Electrical Physical Properties
The following data are representative for carbon steel and are not mandatory requirements of ASTM A53. They provide supplementary information for design and engineering calculations. Density used for weight estimation, thermal conductivity for heat transfer analysis.
| Property | Typical Value | Unit | Test Condition / Reference |
|---|---|---|---|
| Density (ρ) | 7.85 | g/cm³ | Room temperature |
| Modulus of Elasticity (E) | 205 | GPa | Tension, room temperature |
| Shear Modulus (G) | 80 | GPa | Calculated from E and Poisson ratio |
| Poisson's Ratio (ν) | 0.29 | — | Elastic range |
| Thermal Expansion Coefficient (α) | 11.7 | 10⁻⁶/K | 20–100 °C |
| Thermal Conductivity (λ) | 51.9 | W/(m·K) | At 100 °C |
| Specific Heat Capacity (c) | 486 | J/(kg·K) | At 50–100 °C |
| Electrical Resistivity (ρ_e) | 0.15 | Ω·mm²/m | At 20 °C |
ASTM A53 Grade A Carbon Steel Pipe Mechanical Properties
These values represent the minimum requirements per ASTM A53/A53M for Grade A. Elongation is calculated based on specimen area or wall thickness using the formula E = 625000 A0.2/U0.9 (A=specimen area, U=tensile strength) or a simplified strip method. Bending tests are mandatory for finished pipes.
| Property | Required Value | Unit | Test Condition |
|---|---|---|---|
| Tensile Strength (Rm) | 330 min | MPa | Transverse or longitudinal specimen |
| Tensile Strength (Rm) | 48 min | ksi | Transverse or longitudinal specimen |
| Yield Strength (ReH) | 205 min | MPa | Transverse or longitudinal specimen |
| Yield Strength (ReH) | 30 min | ksi | Transverse or longitudinal specimen |
| Elongation (A) | Calculated per formula | % | 50 mm (2 in) gauge length; varies by size |
| Elongation example (for 0.25 in wall) | ~30 (typical) | % | Basic minimum for strip specimen |
| Bend Test (cold) | No cracks, no fissures | — | 90° bend around a mandrel diameter as per standard |
ASTM A53 Grade A Carbon Steel Pipe Exact Equivalent Grade Standards and Replacement Options
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| USA / International | API 5L (withdrawn) | Grade A | Historically identical; not current, but may be used interchangeably for legacy projects |
| International (ISO) | ISO 3183 | L245 | PSL 1 pipe, equivalent chemistry and mechanical requirements |
| Europe | EN 10217-1 | P235TR1 | Welded tube, comparable strength level, similar chemical control |
| Japan | JIS G3454 | STPG370 | Pressure service pipe, based on 370 MPa tensile class |
| China | GB/T 8163 | 10# | Seamless pipe for fluid service, widely used equivalent |
ASTM A53 Grade A Carbon Steel Pipe Application Introduction
ASTM A53 Grade A pipe is widely used across multiple industries where moderate strength, reliable weldability, and low cost are critical. The material is suitable for both pressure-containing and non-pressure applications, with preference for low-pressure fluid handling and structural frameworks. Typical sectors and products include:
Product Applications: Steam and condensate return piping, Fire sprinkler mains and branch lines, Natural gas distribution lines (below 200 psi), Structural pipe piles and bollards, Fencing, handrails, and scaffolding tubes, Air compressor discharge piping
Processed into products: Pipe spools and prefabricated sections, Custom machined fittings and flanges (from pipe ends), Roller conveyor tubes and axles, Seamless or welded hollow sections for mechanical parts, Low-pressure manifolds and headers, Non-critical heat exchanger tubes
Application industries: Building & construction (HVAC, fire protection, structural columns), Oil & gas (gathering lines, flow lines for low-pressure fluids), Water & wastewater treatment (distribution piping, irrigation), Power generation (cooling water, compressed air, lube oil piping), General manufacturing (machinery frames, conveyor rolls, hydraulic cylinders)
ASTM A53 Grade A Carbon Steel Pipe Similar / Substitute Materials with Comparable Performance
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| USA | ASTM A53 | Grade B | Higher strength (350 MPa tensile, 240 MPa yield), slightly higher C and Mn; can replace Gr. A in many cases |
| USA | API 5L | X42 | Line pipe with minimum yield 290 MPa, used for higher pressure; not direct substitute but suitable for many structural/piping needs |
| Germany | DIN 1626 | St37.0 | Similar strength range, used for welded pipes in general engineering |
| India | IS 1239 | Heavy Class (YST 210) | Mild steel tube for water, gas, steam; close to Gr. A in mechanical properties |
Notes:
ASTM A53 Grade A pipe is generally supplied in sizes from NPS 1/8 to 26 (DN6–DN650).
- Hydrostatic testing is mandatory for pipes designated for pressure service (test pressures per standard).
- The material can be galvanized per ASTM A153 or coated for corrosion resistance in atmospheric environments.
- Welding procedures should follow standard practices for carbon steel; preheating is not usually required for wall thicknesses under 25 mm, but stress relieving may improve service life in corrosive media.
- For use at low temperatures, supplementary impact testing is not specified under Gr. A; project-specific toughness requirements should be agreed upon between purchaser and supplier.
