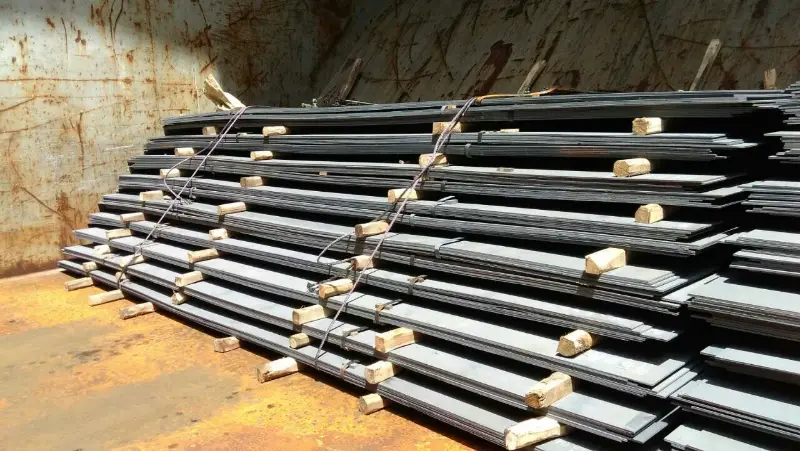

ASTM A131 Grade DH32 Shipbuilding Steel Plate
ASTM A131 Grade DH32 Shipbuilding Steel Plate - High-Strength Hull Structural Steel for Marine Applications
Comprehensive technical data for ASTM A131 Grade DH32 steel: chemical composition, mechanical and physical properties, international equivalents, and application guidance for hull construction and offshore structures.
Welding, cutting, cold and hot forming, machining, drilling
- Phone : +8618037372205
- Email : [email protected]
- WhatsApp: Contact via Whtsapp
- WeChat: +8618037372205
ASTM A131 Grade DH32 Shipbuilding Steel Plate Introduction
ASTM A131 Grade DH32 is a high-strength hull structural steel specified by the American Society for Testing and Materials. It is primarily designed for shipbuilding and marine structural applications requiring good notch toughness at low temperatures. The "D" designation indicates that the steel is impact tested at -20°C, the "H" signifies high strength, and "32" denotes a minimum yield strength of 315 MPa (46 ksi). DH32 steel offers an excellent combination of weldability, formability, and strength, making it suitable for critical hull components such as shell plates, decks, and bulkheads. It is typically supplied in normalized, controlled-rolled, or thermo-mechanically controlled processed (TMCP) condition, and meets the requirements of major classification societies.
ASTM A131 Grade DH32 Shipbuilding Steel Plate Chemical Composition
The chemical composition of ASTM A131 Grade DH32 is tightly controlled to ensure good weldability and mechanical properties. Carbon equivalent (Ceq) is usually limited to prevent cold cracking during welding. The values below represent the standard ladle analysis limits. Residual elements may be present, and micro-alloying elements such as Nb, V, or Ti are sometimes added at the producer's discretion for grain refinement, but are not mandatory.
| Element | Specified Value (max or range) | Unit | Notes |
|---|---|---|---|
| Carbon (C) | ≤0.18 | % | |
| Manganese (Mn) | 0.90–1.60 | % | |
| Phosphorus (P) | ≤0.035 | % | |
| Sulfur (S) | ≤0.035 | % | |
| Silicon (Si) | 0.10–0.50 | % | |
| Nickel (Ni) | ≤0.40 | % | |
| Chromium (Cr) | ≤0.20 | % | |
| Molybdenum (Mo) | ≤0.08 | % | |
| Copper (Cu) | ≤0.35 | % | |
| Aluminium (acid soluble) | ≥0.015 | % | Minimum required for grain refining |
| Carbon Equivalent (Ceq) | ≤0.38 | % | Ceq = C + Mn/6 + (Cr+Mo+V)/5 + (Ni+Cu)/15 |
ASTM A131 Grade DH32 Shipbuilding Steel Plate Thermal and Electrical Physical Properties
The following physical properties are typical for carbon-manganese structural steels and may slightly vary depending on exact composition and manufacturing route. They are provided for general design guidance and are not part of the ASTM A131 specification.
| Property | Typical Value | Unit | Test Condition / Remarks |
|---|---|---|---|
| Density (ρ) | 7.85 | g/cm³ | At 20°C |
| Modulus of Elasticity (E) | 200 | GPa | At room temperature |
| Shear Modulus (G) | 80 | GPa | Calculated from E and ν |
| Poisson's Ratio (ν) | 0.3 | – | Elastic range |
| Coefficient of Thermal Expansion (α) | 11.5–12.5 | 10−&sup6;/K | Between 20°C and 100°C |
| Thermal Conductivity (λ) | ~50 | W/(m·K) | At 20°C |
| Specific Heat Capacity | ~460 | J/(kg·K) | At 20°C |
| Electrical Resistivity (ρe) | ~0.15 | μΩ·m | At 20°C |
ASTM A131 Grade DH32 Shipbuilding Steel Plate Mechanical Properties
Mechanical properties are determined on standard test pieces according to the ASTM A131 standard. The values below are the minimum or range requirements for plates up to 50 mm thickness. Impact tests are performed using Charpy V-notch specimens at -20°C. All results must be verified by the manufacturer and typically accepted by a classification society surveyor.
| Property | Required Value | Unit | Test Condition / Remarks |
|---|---|---|---|
| Yield Strength (ReH) | ≥315 | MPa | Transverse specimens, thickness (t) ≤ 50 mm |
| Tensile Strength (Rm) | 440–590 | MPa | Transverse specimens, t ≤ 50 mm |
| Elongation (A) on 200 mm (8 in.) | ≥22 | % | t ≤ 50 mm |
| Elongation (A) on 50 mm (2 in.) | ≥31 | % | t ≤ 50 mm |
| Bend Test (180°) | No cracks on outer surface | – | Bend diameter = 2t; t ≤ 50 mm |
| Charpy Impact Energy (KV) – Longitudinal | ≥34 (average of 3) | J | At -20°C, standard V-notch |
| Charpy Impact Energy (KV) – Transverse | ≥24 (average of 3) | J | At -20°C, standard V-notch |
ASTM A131 Grade DH32 Shipbuilding Steel Plate Fully Equivalent Material Standards and Replaceable Grades
| Country / Region | Standard / Classification Society | Grade | Remarks |
|---|---|---|---|
| International | IACS UR W11 | D32 | Unified Requirement for high-strength hull structural steel |
| United States | ABS | ABS DH32 | Equivalent grade, same mechanical and toughness requirements |
| United Kingdom | Lloyd's Register | LR DH32 | Equivalent |
| Norway / Germany | DNV (formerly DNV GL) | NV D32 | Equivalent |
| France | Bureau Veritas | BV DH32 | Equivalent |
| China | China Classification Society | CCS DH32 | Equivalent |
| Japan | ClassNK (Nippon Kaiji Kyokai) | NK D32 | Equivalent |
| South Korea | Korean Register | KR D32 | Equivalent |
| Italy | RINA | RINA D32 | Equivalent |
ASTM A131 Grade DH32 Shipbuilding Steel Plate Application Introduction
ASTM A131 Grade DH32 is widely used in the construction of seagoing vessels and offshore structures. It offers reliable strength and toughness for primary structural members. Typical applications and components include:
Product Applications: Ship hull plates, Deck plates and stringers, Bulkhead panels, Superstructure elements, Offshore platform legs and braces
Processed into products: Hull shell plating (bottom, side, and sheer strake), Stiffeners (longitudinals and transversals), Web frames, Bilge keels, Hatch coamings, Bulkhead stiffening members, Deck girders and beams, Brackets and knees, Offshore module support structures
Application industries: Shipbuilding, Offshore oil and gas platforms, Marine engineering and coastal construction, Bridge engineering (limited to specific marine environments), Fabrication of pressure vessels and storage tanks (with additional approval)
ASTM A131 Grade DH32 Shipbuilding Steel Plate Similar or Comparable Alternative Materials
| Country / Region | Standard | Grade | Remarks |
|---|---|---|---|
| United States | ASTM A131/A131M | DH36 | Higher strength (min yield 355 MPa) with same toughness level (-20°C) |
| United States | ASTM A131/A131M | EH32 | Same strength, improved low-temperature toughness (-40°C test) |
| United States | ASTM A131/A131M | AH32 | Same strength, reduced toughness (0°C test); may be used in less demanding areas |
| Europe | EN 10025-4 | S355ML | Thermo-mechanically rolled weldable fine-grain structural steel with min yield 355 MPa; Charpy at -50°C; often used in offshore structures; may require additional certification for shipbuilding |
| International | IACS UR W11 | D36 | Higher strength alternative |
Notes:
Welding: The low carbon equivalent and controlled composition allow good weldability. Preheating may be required for thick sections or low ambient temperatures. Consumables matching the strength and toughness of DH32 should be selected.
Certification: Plates are normally supplied with mill test certificates and classification society inspection (ABS, DNV, LR, etc.). Stamping includes grade, heat number, and society marks.
Surface condition: Plates are typically shot blasted and primed for corrosion protection during building. Dimensional tolerances are in accordance with ASTM A6 or other agreed standards.
