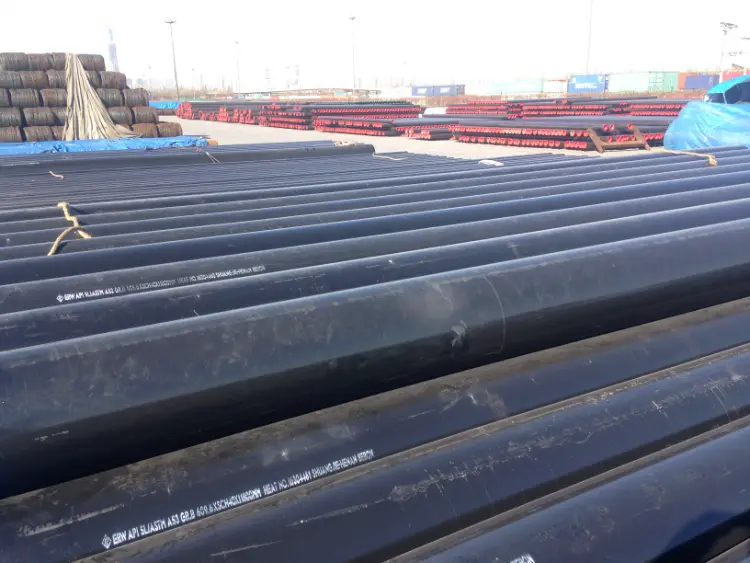

ASME SA53 Grade A ERW Pipe
ASME SA53 Grade A ERW Pipe: Carbon Steel for Pressure & Structural Applications
Complete properties and equivalents for ASME SA53 Grade A electric resistance welded (ERW) pipe used in low to medium pressure systems.
Electric resistance welding (ERW) from hot-rolled strip, may be supplied as-welded or stress-relieved; can be hot-dip galvanized after fabrication
- Phone : +8618037372205
- Email : [email protected]
- WhatsApp: Contact via Whtsapp
- WeChat: +8618037372205
ASME SA53 Grade A ERW Pipe Introduction
ASME SA53 Grade A ERW pipe is a carbon steel tube produced by electric resistance welding, conforming to the ASME Boiler and Pressure Vessel Code, Section II. It is designated for pressure and mechanical applications at moderate temperatures. The material offers a good balance of strength, ductility, and weldability, with a minimum yield strength of 205 MPa (30 ksi) and minimum tensile strength of 330 MPa (48 ksi).
Key attributes:
- Weldable and formable carbon steel for general piping systems
- Economical ERW manufacturing provides consistent wall thickness
- Suitable for conveying water, steam, air, gas, and non-critical petrochemical fluids
- Available in galvanized, black, or coated finishes
- Widely referenced alongside ASTM A53 Grade A for identical requirements
ASME SA53 Grade A ERW Pipe Chemical Composition
The following limits are for heat analysis according to ASME SA53/SA53M (identical to ASTM A53). For product analysis, tolerances may apply. Copper is only specified when copper steel is ordered.
Notes:
- Residual elements such as Ni, Cr, Mo, and V are controlled to ensure reliable welding and ductility.
- ERW pipe made from continuous cast or pressure cast strand is allowed within these limits.
| Element | Value (max, %) | Remarks |
|---|---|---|
| Carbon (C) | 0.25 | Heat analysis |
| Manganese (Mn) | 0.95 | Heat analysis |
| Phosphorus (P) | 0.05 | Heat analysis |
| Sulfur (S) | 0.045 | Heat analysis |
| Copper (Cu) | 0.40 | When copper steel is specified |
| Nickel (Ni) | 0.40 | Residual |
| Chromium (Cr) | 0.40 | Residual |
| Molybdenum (Mo) | 0.15 | Residual |
| Vanadium (V) | 0.08 | Residual |
ASME SA53 Grade A ERW Pipe Thermal and Electrical Physical Properties
These values are typical for plain carbon steels similar to ASME SA53 Grade A and are not mandatory requirements of the pipe standard. Actual properties may vary slightly depending on exact composition and processing.
| Property | Typical Value | Unit | Test Condition |
|---|---|---|---|
| Density (ρ) | 7.85 | g/cm³ | Room temperature |
| Modulus of Elasticity (E) | 200 | GPa | Room temperature |
| Shear Modulus (G) | 80 | GPa | Room temperature |
| Poisson's Ratio (ν) | 0.30 | – | Room temperature |
| Thermal Expansion Coefficient (α) | 11.7 | 10⁻⁶/K | 20–100 °C |
| Thermal Conductivity (λ) | 51.9 | W/(m·K) | At 20 °C |
| Specific Heat Capacity (cp) | 486 | J/(kg·K) | At 20 °C |
| Electrical Resistivity (ρe) | 0.142 | µΩ·m | At 20 °C |
ASME SA53 Grade A ERW Pipe Mechanical Properties
Minimum tensile properties as required by ASME SA53/SA53M for Grade A pipe. All tensile tests must be performed on longitudinal specimens taken from the finished pipe. Elongation requirements vary with specimen type and wall thickness; the basic elongation method is shown with adjustment notes.
| Property | Required Value | Unit | Test Condition |
|---|---|---|---|
| Yield Strength (ReH) | 205 min | MPa | Longitudinal strip test, 0.2% offset or 0.5% extension under load |
| Tensile Strength (Rm) | 330 min | MPa | Longitudinal strip test |
| Elongation (A) in 2 in. (50 mm) | 35 (basic) | % | For wall thickness ≥ 0.312 in. (7.94 mm); reduce by 1.5 percentage points for each 1/32 in. (0.79 mm) decrease in wall thickness below 5/16 in. (7.94 mm) |
| Elongation (A) in 8 in. (200 mm) | 28 (basic) | % | When 8 in. gage used, basic elongation applies to wall ≥ 0.312 in.; adjust similarly |
ASME SA53 Grade A ERW Pipe Identical Grade Standards & Substitutable Designations
| Country / Region | Standard | Grade / Designation | Remarks |
|---|---|---|---|
| USA | ASME SA53/SA53M | Grade A (ERW, Type E) | ASME Boiler & Pressure Vessel Code, identical mechanical and chemical requirements |
| USA | ASTM A53/A53M | Grade A Type E | Original material standard; ASME SA53 references this specification without changes |
| International (historical) | API 5L (obs.) | Grade A (ERW) | Withdrawn from current API 5L, but historically equivalent minimum YS 205 MPa and TS 330 MPa |
ASME SA53 Grade A ERW Pipe Application Introduction
ASME SA53 Grade A ERW pipe is widely used where moderate strength and good weldability are required. It can be fabricated by cutting, threading, welding, and bending. The material is not intended for elevated temperature service above 400°F (200°C) unless design considerations are made. Common applications include:
- Pressure piping for low to medium pressure steam, water, air, and natural gas distribution
- Structural tubular members in construction and industrial frames
- Mechanical and automotive components where hollow sections are advantageous
- Fire protection sprinkler piping (galvanized finish typically required)
Product Applications: Pressure pipe lines (process piping within ASME B31.3 or B31.1), Steam condensate return lines, Compressed air distribution systems, Fire sprinkler mains and branch lines, Structural columns, bollards, and signposts, Scaffolding tubes, Fence posts and gate frames
Processed into products: Nipples, couplings, and pipe fittings (when threaded or welded), Handrails and guardrails, Exhaust pipes and muffler tubes, Hydraulic cylinder tubing (for non-critical cylinders), Roll cages and chassis frames, Greenhouse structures, Conveyor rollers
Application industries: Building & construction, Water & wastewater treatment, Oil & gas (low-pressure gathering lines), Fire protection, Mechanical engineering, Furniture & agricultural equipment
ASME SA53 Grade A ERW Pipe Comparable Alternative Materials
| Country / Region | Standard | Grade / Designation | Remarks |
|---|---|---|---|
| International | ISO 3183:2019 | L210 | Minimum YS 210 MPa, TS 335 MPa; slightly higher strength, often acceptable substitution |
| Europe | EN 10217-1 | P195TR1 | Minimum YS 195 MPa, TS 320–440 MPa; slightly lower yield, check design margin |
| Europe | EN 10217-1 | P235TR2 | Minimum YS 235 MPa, TS 360–500 MPa; higher strength, may require requalification of welding procedures |
| Japan | JIS G3452 | SGP | For ordinary piping (YS ~ 205 MPa), but often supplied to lower strength; verify actual mechanical properties |
| Canada | CSA Z245.1 | Grade 290 | Minimum YS 290 MPa, significantly higher; only for overmatch when strength is acceptable |
Notes:
ASME SA53 Grade A ERW pipe is typically supplied with a hydrostatic or nondestructive electric test as specified in the purchase order. Common NDE methods: ultrasonic or eddy current testing. When service requires, the pipe can be furnished with a beveled end or plain end. Marking includes manufacturer's name, specification, grade, type, size, and heat number. Threaded pipe can be supplied with couplings per ASME B1.20.1. For corrosive environments, galvanizing in accordance with ASTM A153/A153M is often specified.
