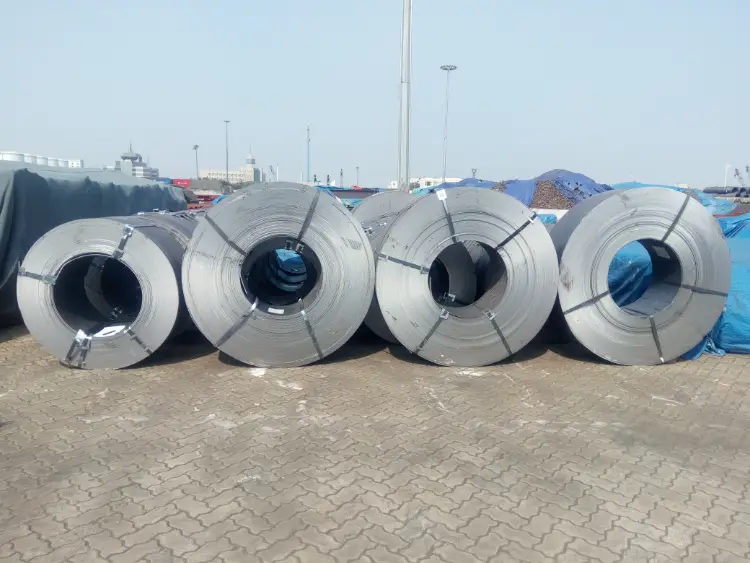

BV A420 Shipbuilding Steel Coil
BV A420 Shipbuilding Steel Coil: High-Strength Hull Structural Material
Comprehensive material data for BV A420 shipbuilding steel coil: chemical composition, mechanical and thermal properties, international equivalents, and application guide.
Cutting, cold forming, welding, bending, edge preparation, shot blasting
- Phone : +8618037372205
- Email : [email protected]
- WhatsApp: Contact via Whtsapp
- WeChat: +8618037372205
BV A420 Shipbuilding Steel Coil Introduction
BV A420 is a high-strength hull structural steel grade certified by Bureau Veritas (BV), meeting the requirements of BV Rules for Classification of Ships. It belongs to the series of normalized or thermo-mechanically controlled processed (TMCP) steels with a minimum specified yield strength of 420 MPa. The 'A' designation indicates impact testing at 20°C, making it suitable for moderate temperature applications where notch toughness at ambient conditions is sufficient. Typical delivery condition is TMCP or normalized. This grade offers an optimal balance of strength, weldability, and formability, enabling weight reduction in ship structures without compromising safety. It is widely used in hull plates, stiffeners, and structural members of large vessels.
BV A420 Shipbuilding Steel Coil Chemical Composition
The chemical composition of BV A420 is controlled to achieve high strength and good weldability. Ladle analysis limits according to BV rules are shown. Microalloying elements such as Niobium, Vanadium, and Titanium are added singly or in combination for grain refinement and precipitation hardening. The carbon equivalent (CEV) is restricted to ensure crack-free welding.
| Chemical Element | Standard Value | Remarks |
|---|---|---|
| Carbon (C) | ≤ 0.21% | |
| Silicon (Si) | 0.10 – 0.55% | |
| Manganese (Mn) | 0.80 – 1.70% | Depending on thickness and CEV requirement |
| Phosphorus (P) | ≤ 0.035% | Lower values achievable (e.g. ≤ 0.025%) |
| Sulfur (S) | ≤ 0.035% | Lower values achievable (e.g. ≤ 0.015%) |
| Aluminium (Al) total | ≥ 0.015% | Acid soluble, for grain refining |
| Niobium (Nb) | 0.02 – 0.05% | Optional microalloying element |
| Vanadium (V) | 0.05 – 0.10% | Optional microalloying element |
| Titanium (Ti) | 0.007 – 0.05% | Optional microalloying element |
| Copper (Cu) | ≤ 0.35% | |
| Chromium (Cr) | ≤ 0.20% | |
| Nickel (Ni) | ≤ 0.40% | |
| Molybdenum (Mo) | ≤ 0.08% | |
| Nitrogen (N) | ≤ 0.012% |
BV A420 Shipbuilding Steel Coil Thermal and Electrical Physical Properties
These physical properties are typical for low-alloy high-strength structural steels and may vary slightly depending on exact chemical composition and microstructure. They are provided for design reference and are not mandatory requirements in the standard.
| Property | Standard Value | Unit | Test Condition |
|---|---|---|---|
| Density (ρ) | 7850 | kg/m³ | Room temperature |
| Elastic Modulus (E) | 206 | GPa | Room temperature |
| Shear Modulus (G) | 79.3 | GPa | Room temperature, calculated |
| Poisson's Ratio (ν) | 0.30 | – | Room temperature |
| Thermal Expansion (α) | 12.0 × 10⁻⁶ | /°C | 20 – 100°C |
| Thermal Expansion (α) | 13.1 × 10⁻⁶ | /°C | 20 – 200°C |
| Thermal Conductivity (λ) | 52 | W/(m·K) | 20°C |
| Specific Heat Capacity (c) | 450 | J/(kg·K) | 20°C |
| Electrical Resistivity (ρ_e) | 0.16 × 10⁻⁶ | Ω·m | 20°C |
BV A420 Shipbuilding Steel Coil Mechanical Properties
Mechanical properties are determined on transverse tensile test specimens. Strength values depend on product thickness. Charpy V-notch impact tests are performed on longitudinal specimens at 20°C, minimum average absorbed energy 27 J. Bending tests are conducted with mandrel diameter as per BV requirements.
| Property | Standard Requirement | Unit | Test Condition |
|---|---|---|---|
| Yield Strength (ReH) | ≥ 420 | MPa | Thickness ≤ 50 mm |
| Yield Strength (ReH) | ≥ 400 | MPa | 50 < thickness ≤ 70 mm |
| Yield Strength (ReH) | ≥ 390 | MPa | 70 < thickness ≤ 100 mm |
| Tensile Strength (Rm) | 530 – 680 | MPa | All thicknesses |
| Elongation (A%) | ≥ 18 | % | Thickness ≤ 50 mm |
| Elongation (A%) | ≥ 18 | % | 50 < thickness ≤ 70 mm |
| Elongation (A%) | ≥ 18 | % | 70 < thickness ≤ 100 mm |
| Impact Energy (KV2) | ≥ 27 (longitudinal) | J | Test temperature 20°C |
| Bend Test (Dia.) | 3t | mm | Thickness ≤ 25 mm |
| Bend Test (Dia.) | 4t | mm | 25 < thickness ≤ 50 mm |
| Bend Test (Dia.) | 5t | mm | 50 < thickness ≤ 100 mm |
BV A420 Shipbuilding Steel Coil Completely Equivalent Material Standards and Substitutable Grades
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| International | ABS | AH420 | American Bureau of Shipping, equivalent strength and impact class (20°C) |
| International | DNV | VL A420 | Det Norske Veritas, same yield 420 MPa, class A |
| International | LR | AH420 | Lloyd's Register, identical designation |
| International | NK | KA420 | Nippon Kaiji Kyokai (ClassNK), equivalent grade |
| International | KR | AH420 | Korean Register, equivalent |
| International | CCS | AH420 | China Classification Society, equivalent |
| International | RINA | AH420 | Registro Italiano Navale, equivalent |
| International | RS | A420 | Russian Maritime Register of Shipping |
BV A420 Shipbuilding Steel Coil Application Introduction
BV A420 is a high-strength steel primarily intended for the construction of ships and other marine structures requiring class certification. Its combination of strength, formability, and adequate toughness at moderate temperatures allows for lighter designs and improved payload capacity.
Product Applications: Hull plates (side, bottom, deck), Longitudinal stiffeners and girders, Transverse bulkheads, Hatch coamings, Barge and vessel structural kits, Ship sections and blocks
Processed into products: Keel plates, Bilge strakes, Sheer strakes, Web frames, Stringer plates, Deck structures, Stiffening ribs, Foundation plates for machinery
Application industries: Shipbuilding (commercial ships, naval vessels), Offshore oil & gas (platforms, FPSO upper structures), Marine renewable energy (wind turbine foundations), Heavy engineering (bridges with BV approval), Container manufacturing (when high strength and class certification are needed)
BV A420 Shipbuilding Steel Coil Similar/Comparable Alternative Material Recommendations
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| International | BV | DH420 | Same strength but impact tested at -20°C; better toughness |
| International | BV | EH420 | Same strength, impact tested at -40°C |
| International | BV | FH420 | Same strength, impact tested at -60°C; highest toughness |
| European Union | EN 10025-4 | S420M/ML | Thermomechanical rolled structural steel, yield 420 MPa, requires careful comparison of CEV and toughness requirements |
| European Union | EN 10025-3 | S420N/NL | Normalized fine grain structural steel, similar strength, different delivery condition |
| China | GB/T 712 | AH420 | Chinese standard shipbuilding steel, similar requirements |
| Japan | JIS G 3106 | SM570 | Higher tensile strength (570-720 MPa), yield approx. 430 MPa, used in welded structures, needs adjustment for toughness class |
| USA | ASTM A945 | Grade 65 (450) | High-strength low-alloy structural steel, yield 450 MPa, not specifically certified by BV |
Notes:
- All plates and coils are subjected to classification society inspection and stamped with the BV mark, heat number, and grade.
- Welding consumables must be compatible with the base material and approved by BV.
- For thicknesses above 100 mm, special agreement with the classification society is required.
- Supplementary testing (e.g., Z-property through-thickness tensile, ultrasonic examination) may be ordered as per BV rules.
- The values provided are based on BV Rules 2023 and IACS Unified Requirements; always refer to the latest applicable specification.
