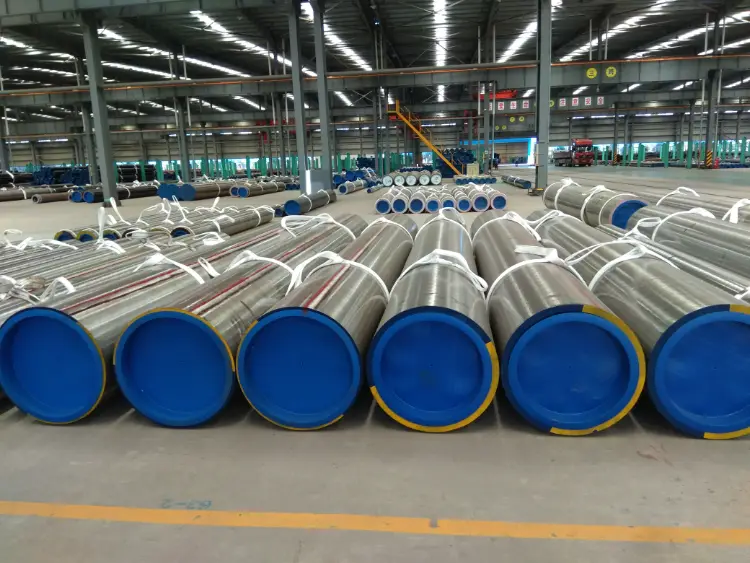

ASTM A789 S31803 Duplex Stainless Steel Pipe
ASTM A789 S31803 Duplex Stainless Steel Pipe: Chemical, Mechanical & Physical Data
Complete material specification for ASTM A789 S31803 duplex stainless steel pipe according to official standards. Includes chemistry, tensile properties, thermal & electrical physical properties, and true international equivalents for engineering and procurement.
Hot forming, cold drawing, bending, welding (GTAW, SMAW, SAW), machining
- Phone : +8618037372205
- Email : [email protected]
- WhatsApp: Contact via Whtsapp
- WeChat: +8618037372205
ASTM A789 S31803 Duplex Stainless Steel Pipe Introduction
ASTM A789 S31803 is a widely used duplex (ferritic-austenitic) stainless steel pipe grade with a balanced microstructure of approximately 50% austenite and 50% ferrite. It is characterized by high strength, excellent corrosion resistance (especially stress corrosion cracking and pitting), and good weldability. The typical PREN (pitting resistance equivalent number) ranges from 30 to 38, making it suitable for aggressive environments such as seawater, chloride-containing media, and sour service. This grade is extensively specified for heat exchangers, process piping, and oil and gas applications where both mechanical integrity and durability are critical.
ASTM A789 S31803 Duplex Stainless Steel Pipe Chemical Composition
Chemical composition limits according to those specified in ASTM A789/A789M for UNS S31803. The alloy relies on a balance of Cr, Mo, and N to achieve the duplex microstructure and corrosion resistance. Strict control of nitrogen ensures proper austenite formation during welding.
| Element | Required Value (%, weight) | Remarks |
|---|---|---|
| Carbon (C) | 0.030 max | |
| Manganese (Mn) | 2.00 max | |
| Phosphorus (P) | 0.030 max | |
| Sulfur (S) | 0.020 max | |
| Silicon (Si) | 1.00 max | |
| Chromium (Cr) | 21.0 – 23.0 | Key element for corrosion resistance |
| Nickel (Ni) | 4.50 – 6.50 | Stabilizes austenite |
| Molybdenum (Mo) | 2.50 – 3.50 | Improves pitting resistance |
| Nitrogen (N) | 0.08 – 0.20 | Enhances strength and pitting resistance, promotes austenite |
| Copper (Cu) | not specified* | Typically ≤ 0.5% residual |
| Iron (Fe) | balance | Matrix |
ASTM A789 S31803 Duplex Stainless Steel Pipe Typical Physical Properties
The following physical properties are typical values for wrought S31803/2205 duplex stainless steel at ambient temperature unless otherwise noted. These data are based on recognized industry sources and serve as a guide for engineering design; they are not mandatory specification requirements.
| Property | Typical Value | Unit | Test Condition / Temperature |
|---|---|---|---|
| Density (ρ) | 7.80 | g/cm³ | 20 °C |
| Modulus of Elasticity (E) | 200 | GPa | 20 °C |
| Shear Modulus (G) | 79 | GPa | 20 °C (calculated) |
| Poisson's Ratio (ν) | 0.30 | — | 20 °C |
| Thermal Expansion Coefficient (α) | 13.5 (average 20–100 °C) / 14.0 (20–200 °C) | ×10-6/K | Temperature range indicated |
| Thermal Conductivity (λ) | 15 (at 20 °C) / 16 (at 100 °C) / 19 (at 300 °C) | W/m·K | At indicated temperatures |
| Specific Heat Capacity (cp) | 500 (at 20 °C) / 530 (at 100 °C) | J/kg·K | At indicated temperatures |
| Electrical Resistivity (ρe) | 0.80 | Ω·mm²/m | 20 °C |
ASTM A789 S31803 Duplex Stainless Steel Pipe Mechanical Properties at Room Temperature
Minimum tensile properties required by ASTM A789/A789M for S31803 pipe in the solution-annealed condition. Testing is performed on full-section longitudinal specimens according to ASTM A370 or equivalent. Property achievement is validated through mill tests.
| Property | Required Minimum Value | Unit | Test Condition / Remarks |
|---|---|---|---|
| Tensile Strength (Rm) | 620 (90) | MPa (ksi) | Room temperature, longitudinal |
| Yield Strength (ReH, 0.2% offset) | 450 (65) | MPa (ksi) | Room temperature, longitudinal |
| Elongation (A50mm) | 25 | % | 50 mm (2 in.) gauge length |
ASTM A789 S31803 Duplex Stainless Steel Pipe Full International Equivalent Standards & Replaceable Designations
| Country/Region | Standard/Specification | Grade/Designation | Remarks |
|---|---|---|---|
| USA | ASTM A789/A789M | UNS S31803 | Original standard pipe grade |
| USA (also ASME) | ASME SA-789/SA-789M | SA-789 S31803 | ASME BPVC adopted identical grade |
| Europe (EN) | EN 10088-3 (bars), EN 10088-2 (sheet/plate) – nearest tube standard EN 10216-5/EN 10217-7 | 1.4462 (X2CrNiMoN22-5-3) | Closest European designation; often used interchangeably in procurement |
| International (ISO/NACE) | ISO 15156-3 / NACE MR0175 | UNS S31803 (Table A.2 qualification) | Accepted for sour service within limits of ISO 15156-3 |
ASTM A789 S31803 Duplex Stainless Steel Pipe Application Introduction
ASTM A789 S31803 pipe is engineered for demanding service where higher strength than austenitic stainless steels and chloride stress corrosion cracking resistance are required simultaneously. Its typical applications span chemical processing, marine engineering, and energy industries. The combination of good formability, weldability, and fatigue strength makes it suitable for both stationary equipment and rotating components.
Product Applications: Heat exchanger tubes, Process piping and flowlines, Seawater cooling pipes, Pressure vessels (shell-and-tube exchangers), Instrument tubing
Processed into products: Pipe fittings (elbows, tees, reducers), Flanges and connectors, Welded spools and assemblies, Valve bodies and trim, Pump shafts and sleeves, Fasteners (bolting when corrosion resistance required), Centrifugal compressor impellers
Application industries: Oil & Gas (offshore and onshore), Chemical and petrochemical processing, Desalination and water treatment, Pulp and paper mills, Structural and mechanical engineering, Flue gas desulfurization (FGD) systems
ASTM A789 S31803 Duplex Stainless Steel Pipe Closely Related / Similar Alternative Materials
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| USA | ASTM A789, A790 | UNS S32205 | Second-generation 2205 duplex with tighter N (0.14-0.20%) and improved phase balance; fully interchangeable with S31803 for most applications. Often dual-certified S31803/S32205. |
| Europe | EN 10088-2, EN 10216-5 | 1.4462 (X2CrNiMoN22-5-3) S31803 equivalent; also supplied as 1.4462 with controlled N for S32205 compliance. | Identical chemical envelope; purchasers should specify whether S31803 or S32205 is required. |
| Japan | JIS G 3459 / G 3463 | SUS329J3L (similar to 2205) | SUS329J3L covers a broader composition range; ensure proper mechanicals and corrosion resistance align with S31803 requirements. |
Notes:
- Corrosion performance: S31803 exhibits excellent resistance to chloride stress corrosion cracking, pitting, and crevice corrosion. PREN typically falls between 30 and 38 (depending on exact composition), making it suitable for moderate to high chloride environments.
- Welding: Low heat input welding processes (e.g., GTAW/TIG) with over-alloyed filler (e.g., ER2209) are recommended. Post-weld solution annealing is not always mandatory, but control of intermetallic phases is essential.
- Heat treatment: Solution annealing must be performed at 1020–1100 °C, followed by rapid cooling to avoid sigma phase precipitation.
- Common dual certification: Many mills supply the product as dual certified UNS S31803/S32205, combining the advantages of the original and the tighter chemistry grade. Always confirm project requirements with the supplier.
