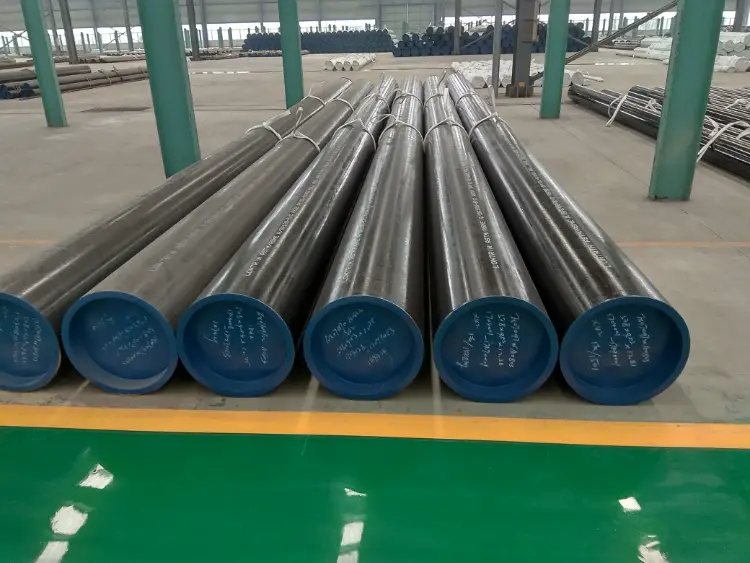

API 5L X42 PSL1 LSAW Pipe
API 5L X42 PSL1 LSAW Pipe: High-Strength Pipeline Steel for Oil & Gas Transmission
API 5L X42 PSL1 is a high-strength low-alloy steel designed for oil and gas transportation pipelines, offering excellent weldability and reliability in welded LSAW pipes.
Longitudinal submerged arc welding (LSAW), UOE/JCOE forming, tack welding, final welding, and optional stress relief.
- Phone : +8618037372205
- Email : [email protected]
- WhatsApp: Contact via Whtsapp
- WeChat: +8618037372205
API 5L X42 PSL1 LSAW Pipe Introduction
API 5L X42 PSL1 is a grade of line pipe steel defined by the American Petroleum Institute (API) Specification 5L for product specification level 1. It is primarily used in longitudinal submerged arc welded (LSAW) pipes for conveying oil, gas, and water in the petroleum and natural gas industries. The material offers a minimum yield strength of 290 MPa (42 ksi) and a minimum tensile strength of 414 MPa (60 ksi). Its controlled chemical composition and good toughness make it suitable for low to moderate pressure transmission systems. The grade provides a balance between strength, formability, and weldability, ensuring reliable performance in various environmental conditions.
API 5L X42 PSL1 LSAW Pipe Chemical Composition
The chemical composition of API 5L X42 PSL1 is based on ladle analysis according to API Spec 5L. Carbon equivalent (CE) formulas may also apply to ensure weldability. Typical limits are indicated below; actual values may be further restricted by supplementary requirements or by the pipe manufacturer's internal specifications.
| Element | Standard Value (max %) | Remarks |
|---|---|---|
| C | 0.22 | For grade X42, ladle analysis |
| Mn | 1.20 | |
| P | 0.025 | |
| S | 0.015 | |
| Si | 0.45 | |
| V + Nb + Ti | 0.05 each | Micro-alloying elements, total not typically limited as a sum but individual max 0.05% |
| Cu | 0.50 | If copper addition is used |
| Ni | 0.50 | |
| Cr | 0.50 | |
| Mo | 0.15 | |
| CE (IIW) | 0.43 | Typical carbon equivalent limit for PSL1, not mandatory but often guaranteed |
API 5L X42 PSL1 LSAW Pipe Thermal and Electrical Physical Properties
Physical properties are not mandatory in the API 5L standard but are provided for design and processing reference based on typical mild steel behavior. Actual values may vary slightly depending on the specific chemistry and manufacturing process.
| Property | Typical Value | Unit | Test Condition |
|---|---|---|---|
| Density (ρ) | 7.85 | g/cm³ | 20 °C |
| Modulus of Elasticity (E) | 200 - 210 | GPa | 20 °C |
| Shear Modulus (G) | ≈ 80 | GPa | 20 °C |
| Poisson's Ratio (ν) | 0.29 - 0.30 | – | |
| Thermal Expansion Coefficient (α) | 11.7 - 12.5 | 10⁻⁶/K | 20 – 100 °C |
| Thermal Conductivity (λ) | 50 - 54 | W/(m·K) | 20 °C |
| Specific Heat Capacity (cₚ) | 480 - 500 | J/(kg·K) | 20 °C |
| Electrical Resistivity (ρₑ) | 0.13 - 0.17 | μΩ·m | 20 °C |
API 5L X42 PSL1 LSAW Pipe Mechanical Properties
The mechanical properties are specified by API Spec 5L for the pipe body and weld seam. Tensile testing is performed in the transverse direction. Elongation requirements are calculated according to the standard formula based on tensile strength and specimen area. For LSAW pipe, the weld zone shall also meet the required tensile strength, and guided bend tests verify ductility.
| Property | Standard Required Value | Unit | Test Condition |
|---|---|---|---|
| Yield Strength (Rt0.5) | 290 - 496 | MPa | Transverse strip test or round bar test, 0.5% total extension under load |
| Tensile Strength (Rm) | ≥ 414 | MPa | |
| Elongation (A, 50 mm gauge) | ≥ 21 (example for typical wall thickness) | % | Calculated per API 5L: e = 1940 * A0.2 / U0.9, where A is cross-sectional area and U is specified minimum tensile strength |
| Elongation (A, 2 in. gauge) | ≥ 21 (typical) | % | |
| Weld Seam Tensile Strength | ≥ 414 | MPa | Transverse weld tensile test |
| Guided Bend Test | No cracks exceeding 3 mm | 180° bend around a diameter of 3T for thickness ≤ 12.7 mm, others per standard | |
| Hydrostatic Test | Specified by design | MPa | Hold time based on standard or order |
API 5L X42 PSL1 LSAW Pipe Full Equivalent Material Standards and Substitutable Grades
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| International | ISO 3183 | L290 | Equivalent to API 5L X42 PSL1 |
| Europe | EN 10208-2 | L290MB | For sour service or non-sour, depending on suffix |
| Europe | EN 10208-2 | L290NB | For normalized condition |
| China | GB/T 9711 | L290 (or X42) | PSL1 equivalent |
| Russia | GOST 20295 | K42 or X42 | May require additional checks on composition |
| Canada | CSA Z245.1 | Grade 290 (Category I) | Comparable strength and chemical limits |
API 5L X42 PSL1 LSAW Pipe Application Introduction
API 5L X42 PSL1 LSAW pipe is predominantly used in the oil and gas sector for medium-pressure onshore and offshore pipelines. Its properties also make it suitable for structural applications, water transmission, and piling. The LSAW manufacturing process allows large diameters and thick walls, making it ideal for major trunk lines and distribution networks.
Product Applications: Mainline pipeline segments for oil and natural gas, Gathering and distribution lines, Onshore and offshore riser pipes, Structural hollow sections for heavy construction, Sheet piling and foundation pipes, Penstocks and water mains
Processed into products: LSAW pipe spools and field bends, Flanged and welded field joints, Tees, reducers, and end caps fabricated from the same grade, Pipeline support frames and saddles, Subsea pipeline manifolds (if properly coated and designed), Casing pipes for wells and conduits
Application industries: Oil & Gas (upstream and midstream transmission), Water and wastewater transportation, Structural and civil engineering (piling, bridge supports), Petrochemical and refinery piping, Slurry and mineral transport pipelines
API 5L X42 PSL1 LSAW Pipe Similar/Alternative Material Recommendations
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| USA | API 5L | X46 PSL1 | Higher strength (yield min 317 MPa), similar weldability, may be used for slightly higher pressure designs |
| USA | API 5L | X52 PSL1 | Higher strength (yield min 359 MPa), often used in high-pressure transmission lines |
| USA | ASTM A53 / A53M | Grade B | Seamless and welded pipe for mechanical and pressure applications; yield ≥ 241 MPa, lower strength but widely available |
| USA | ASTM A106 / A106M | Grade B | Seamless carbon steel pipe for high-temperature service; yield ≥ 240 MPa |
| International | ISO 3183 | L320 | Equivalent to X46, next higher grade, suitable for higher flow demands |
| Europe | EN 10208-2 | L245 or L360 | L245 (equivalent to X42 can be used for lower strength needs), L360 (X52) for higher strength |
Notes:
For PSL1, notch toughness (Charpy impact) testing is not mandatory, but can be specified via supplementary requirements. Weld repair and heat treatment are subject to purchaser specifications. LSAW pipe must be manufactured with a full-length longitudinal weld, and the weld shall be fully penetrated. All testing and inspection must comply with API 5L requirements, and traceability of the steel source is maintained. Additional requirements for sour service (e.g., NACE MR0175) may demand lower hardness and stricter chemistry limits, which are typically covered under PSL2 or separate annexes.
