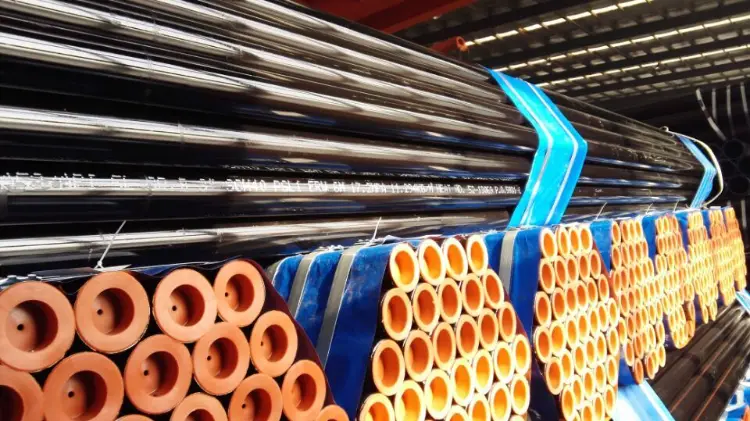

API 5L PSL1 Grade B LSAW Pipe
API 5L PSL1 Grade B LSAW Pipe: Comprehensive Material Data and Specifications
Complete material analysis for API 5L PSL1 Grade B longitudinal submerged arc welded (LSAW) pipe, including chemical composition, mechanical properties, typical physical data, and global equivalent standards.
Longitudinal Submerged Arc Welding (LSAW)
- Phone : +8618037372205
- Email : [email protected]
- WhatsApp: Contact via Whtsapp
- WeChat: +8618037372205
API 5L PSL1 Grade B LSAW Pipe Introduction
API 5L PSL1 Grade B LSAW pipe is a widely used carbon steel line pipe designed for the transmission of oil, gas, and water in pipeline systems. Produced by longitudinal submerged arc welding, it offers excellent weldability, moderate strength, and reliable performance at ambient to moderately elevated temperatures. Under PSL1 (Product Specification Level 1), the pipe meets basic quality requirements with standard testing for chemical composition, tensile strength, and hydrostatic pressure. Typical applications include long-distance onshore and offshore pipelines, gathering lines, and distribution networks. The material is suitable for large-diameter, heavy-wall pipes where cost-effectiveness and structural integrity are paramount.
API 5L PSL1 Grade B LSAW Pipe Chemical Composition
Chemical requirements for PSL1 Grade B welded pipe as per API 5L Table 1. The values represent maximum limits for ladle analysis. Residual elements are controlled to ensure weldability and toughness. The composition of the weld metal may differ but shall be compatible with the base metal.
| Element | Standard Value | Remarks |
|---|---|---|
| Carbon (C) | 0.26 max | Applicable to welded pipe as per API 5L PSL1 Grade B |
| Manganese (Mn) | 1.20 max | |
| Phosphorus (P) | 0.030 max | |
| Sulfur (S) | 0.030 max | |
| Copper (Cu) | 0.50 max | Residual element |
| Nickel (Ni) | 0.50 max | Residual element |
| Chromium (Cr) | 0.50 max | Residual element |
| Molybdenum (Mo) | 0.15 max | Residual element |
| Niobium + Vanadium + Titanium (Nb+V+Ti) | 0.15 max | When added; otherwise no requirement |
API 5L PSL1 Grade B LSAW Pipe Physical Properties
Typical physical properties for carbon steel of this grade. These values are not specified in API 5L but are provided for general engineering reference. Actual values may vary with composition, microstructure, and temperature.
| Property | Reference Value | Unit | Test Condition |
|---|---|---|---|
| Density (ρ) | 7.85 | g/cm³ | Room temperature |
| Modulus of Elasticity (E) | 205 | GPa | At 20 °C |
| Shear Modulus (G) | 80 | GPa | At 20 °C, calculated |
| Poisson's Ratio (ν) | 0.3 | — | Room temperature |
| Thermal Expansion Coefficient (α) | 11.5 – 13 | 10⁻⁶ /K | 20 – 300 °C |
| Thermal Conductivity (λ) | 50 | W/(m·K) | At 20 °C |
| Specific Heat Capacity | 470 | J/(kg·K) | At 20 °C |
| Electrical Resistivity (ρ_e) | ~0.16 | µΩ·m | At 20 °C |
API 5L PSL1 Grade B LSAW Pipe Mechanical Properties
Mechanical property requirements for PSL1 Grade B pipe as specified in API 5L. The tensile test is performed on a transverse strip specimen taken from the pipe body. Elongation is calculated according to the API 5L formula and varies with wall thickness and specimen area. Bend test and impact test are not mandatory for PSL1 unless specified in the purchase order.
| Property | Standard Requirement | Unit | Test Condition |
|---|---|---|---|
| Yield Strength (ReH) | 241 min | MPa | Transverse strip, 0.5% total extension under load |
| Tensile Strength (Rm) | 414 min | MPa | Transverse strip |
| Elongation after fracture (A) | Per API 5L formula: e = 1940 * S^0.2 / U^0.9 | % | Gauge length 50 mm, strip specimen area S (mm²), U=414 MPa |
API 5L PSL1 Grade B LSAW Pipe Completely Equivalent Material Standards and Substitutable Grades
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| International (ISO) | ISO 3183 | L245B | PSL1 equivalent to API 5L Grade B |
| Europe | EN 10208-1 | L245B | Equivalent line pipe grade (PSL1) |
| China | GB/T 9711 | L245B | Petroleum and natural gas industry pipeline steel |
API 5L PSL1 Grade B LSAW Pipe Application Introduction
API 5L PSL1 Grade B LSAW pipe is engineered for fluid transmission under moderate pressures. Its large diameter and thick wall capability make it ideal for mainline piping systems. The material can be cold formed, welded, and fabricated into various pipeline components, provided due care is given to post-weld residual stresses and coating requirements.
Product Applications: Long-distance crude oil and natural gas pipelines, Water mains and distribution networks, Slurry and mineral transport lines, Offshore risers and flowlines (sweet service)
Processed into products: Line pipe spools and straight sections, Pipe bends and elbows (3D, 5D, 7D etc.), Tees, reducers, and caps, Welded flanges and pup pieces, Structural pipe piles and casings
Application industries: Oil and Gas Transportation, Water Supply and Distribution, Structural and Civil Engineering (piling, jacketing), Chemical and Petrochemical Process Piping
API 5L PSL1 Grade B LSAW Pipe Similar and Alternative Material Recommendations
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| USA | ASTM A53 | Grade B | Seamless/welded pipe; similar strength but different standard, check PSL/specification |
| USA | ASTM A106 | Grade B | Seamless carbon steel pipe for high-temperature service; chemical and mechanical overlaps |
| USA | ASME SA53 / SA106 | B | ASME equivalents for pressure piping; ensure PSL1/PSL2 alignment |
| Japan | JIS G3454 | STPG410 | Carbon steel pressure pipe; similar tensile properties, verify delivery condition |
| Europe | EN 10216-2 / EN 10217-1 | P235GH / P235TR1 | Seamless/welded pipes for pressure purposes; similar carbon-manganese steel, check charpy requirements |
Notes:
PSL1 represents a basic quality level with limited testing requirements. For higher toughness, stricter chemistry, or additional non-destructive examination, consider PSL2 Grade B or higher grades. LSAW pipes are typically manufactured from hot-rolled coiled plates and welded along the longitudinal seam; the seam is subjected to full-length ultrasonic or radiographic inspection as per API 5L requirements. All pipes are hydrostatically tested at the mill. When ordering, specify diameter, wall thickness, length, and corrosion protection needs.
