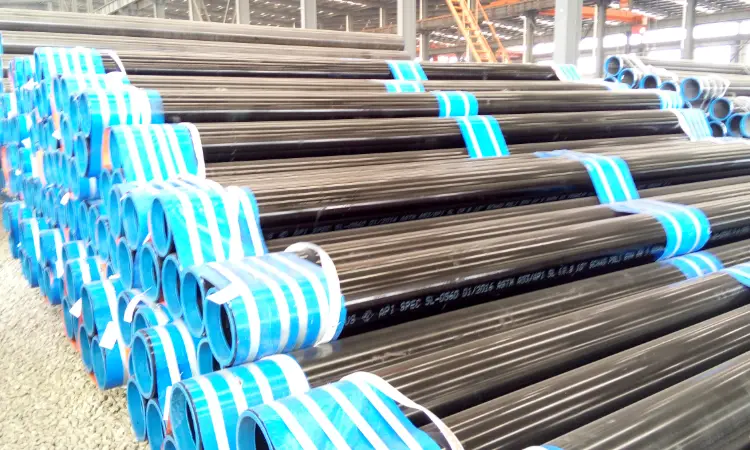

API 5L PSL2 Grade B LSAW Pipe
API 5L PSL2 Grade B LSAW Pipe - Properties, Equivalents & Applications
Complete technical analysis of API 5L PSL2 Grade B LSAW pipe: chemical composition, mechanical & physical properties, international equivalents, and application guide.
Welding (LSAW), may be supplied as-rolled, normalised, or thermomechanically processed; applicable forming processes include cold bending, hot induction bending, and coating for corrosion protection
- Phone : +8618037372205
- Email : [email protected]
- WhatsApp: Contact via Whtsapp
- WeChat: +8618037372205
API 5L PSL2 Grade B LSAW Pipe Introduction
API 5L PSL2 Grade B LSAW pipe is a longitudinally submerged arc welded line pipe manufactured to the API 5L specification (Product Specification Level 2). Grade B is a carbon–manganese steel with minimum yield strength of 241 MPa (35 ksi), suitable for conveying oil, gas, and water under moderate pressure. PSL2 mandates tighter chemical control, mandatory notch toughness (Charpy V-notch), and non-destructive testing, delivering reliable performance in demanding pipeline applications. LSAW (longitudinal seam) production enables large diameters and thick walls with excellent dimensional accuracy.
API 5L PSL2 Grade B LSAW Pipe Chemical Composition
Chemical requirements for API 5L PSL2 Grade B, as per Table 4 of API 5L (46th Edition). The sum of niobium, vanadium, and titanium is limited to 0.15% max. Silicon content is not mandated but is typically controlled during deoxidation. Carbon equivalent (CEPcm) is not normally specified for Grade B PSL2, but heat analysis must meet these limits for product qualification.
| Element | Standard Value (max, %) | Remarks |
|---|---|---|
| Carbon (C) | 0.22 | |
| Manganese (Mn) | 1.20 | Maximum allowed |
| Phosphorus (P) | 0.025 | Tighter limit for PSL2 |
| Sulfur (S) | 0.015 | Tighter limit for PSL2 |
| Titanium (Ti) | 0.04 | May be added for grain refinement |
| Niobium (Nb) | 0.05* | Sum Nb+V+Ti ≤ 0.15% |
| Vanadium (V) | 0.05* | Sum Nb+V+Ti ≤ 0.15% |
| Aluminium (Al) | 0.060 (total) | Typical for grain refinement; required for fine grain practice |
| Silicon (Si) | 0.45** | Typically ≤ 0.45% for deoxidation, not mandated by standard |
| Iron (Fe) | Balance |
API 5L PSL2 Grade B LSAW Pipe Physical Properties
The physical properties given below are typical for carbon-manganese steel of API 5L Grade B type. Actual values may vary slightly with composition, heat treatment, and temperature. These data serve as engineering reference for design.
| Property | Typical Value | Unit | Test Condition |
|---|---|---|---|
| Density (ρ) | 7.85 | g/cm³ | Room temperature |
| Modulus of Elasticity (E) | 205 | GPa | Room temperature |
| Shear Modulus (G) | 80 | GPa | Room temperature |
| Poisson's Ratio (ν) | 0.30 | – | Room temperature |
| Coefficient of Thermal Expansion (α) | 11.7 × 10-6 | K-1 | 20–100°C |
| Thermal Conductivity (λ) | 50 | W/(m·K) | 50°C |
| Specific Heat Capacity (cp) | 486 | J/(kg·K) | 50°C |
| Electrical Resistivity (ρe) | 0.16 × 10-6 | Ω·m | Room temperature |
API 5L PSL2 Grade B LSAW Pipe Mechanical Properties
Mechanical properties are specified for the pipe body (base metal) per API 5L PSL2. The yield strength is determined at 0.5% total extension under load (for pipe with D/t ratio applicable). The elongation values depend on specimen area and tensile strength; minimum elongation formulas are given in API 5L Table 7B, and typical values are provided for common wall thicknesses. Charpy V-notch impact energy tests are required for PSL2 at 0°C unless otherwise agreed.
| Property | Standard Required Value | Unit | Test Condition |
|---|---|---|---|
| Yield Strength (ReH) | 241 – 448 | MPa | Transverse strip/round specimen, room temperature |
| Tensile Strength (Rm) | 414 – 758 | MPa | Transverse strip/round specimen, room temperature |
| Elongation (A) | Min. 23 (typical for t ≤ 20 mm) | % | 2 inch (50.8 mm) gauge length, rectangular specimen; per e = 625,000 A^0.2 / U^0.9 |
| Bend Test | No cracks after 180° bending | – | Mandrel diameter = 3 × wall thickness (for Grade B PSL2) |
| Charpy Impact (KV2) | Min. 27 J (individual), 36 J (average of three) | J | Transverse, 0°C (PSL2 requirement); often also tested at lower design temperature |
API 5L PSL2 Grade B LSAW Pipe Exact Equivalent Material Standards & Substitutable Grades
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| International (ISO) | ISO 3183 | L245 PSL2 | Identical yield strength (245 MPa min); PSL2 requirements aligned with API 5L |
| European Union | EN 10208-2 | L245NB or L245MB | L245NB (normalized), L245MB (TMCP) – both meet PSL2 toughness and chemical limits; EN 10208-2 is derived from ISO 3183 |
| China | GB/T 9711 | L245 (PSL2) | Chinese national standard for line pipe; equivalent to API 5L Grade B PSL2 |
| USA (alternative) | ASTM A53 | Grade B (Type E or S) | ERW or seamless; mechanical properties similar but not PSL2-toughness tested. Suitable for structural or lower-pressure applications after engineering assessment |
API 5L PSL2 Grade B LSAW Pipe Application Introduction
API 5L PSL2 Grade B LSAW pipe is a workhorse material for the petroleum and natural gas industry, well suited for onshore and offshore transmission lines carrying sweet or slightly sour hydrocarbons, water, and multiphase fluids. Its guaranteed toughness and weld seam NDE make it acceptable for moderate-pressure, large-diameter pipelines that must meet safety regulations. It can also be employed in structural engineering where its high strength-to-weight ratio provides economic advantages.
Product Applications: Long-distance cross-country pipelines, Flowlines and gathering lines, Water injection and produced water lines, Offshore risers and J-tubes, Structural pipe for building frames, towers, and bridges, Caissons, monopiles for wind turbines, and foundation piles
Processed into products: Pipe spools and field girth welds, Induction bends (hot bends) matching the base pipe, Flanges, tees, and reducers fabricated from the same pipe material, Pipeline valves and fittings where the body is made from similar grade, Anchor flanges and pig launcher/receiver barrels
Application industries: Oil & Gas (upstream and midstream), Water and wastewater transmission, Petrochemical and refinery piping, Civil and structural engineering (piling, tubular trusses), Marine and offshore construction
API 5L PSL2 Grade B LSAW Pipe Similar / Replaceable Materials
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| USA | ASTM A106 | Grade B | Seamless carbon steel pipe for high-temperature service; similar strength but no PSL2 toughness guarantee. Suitable for non-pipeline structural or process piping |
| European Union | EN 10216-2 | P235GH | Pressure-purpose seamless steel; comparable tensile properties, but chemistry and testing differ; can be considered for non-pipeline applications |
| USA | ASTM A333 | Grade 6 | Low-temperature seamless/welded pipe; good toughness, strength slightly lower; may substitute where sub-zero toughness is required |
| International | API 5L | Grade X42 PSL2 | Next strength grade (290 MPa min yield); offers higher pressure rating; can replace Grade B if upgraded strength is acceptable and design permits |
| European Union | EN 10217-1 | P235TR2 | Welded pipe for pressure purposes, similar yield strength, not specifically line pipe standard |
Notes:
Important considerations for ordering API 5L Grade B PSL2 LSAW pipe:
- Specify product specification level (PSL2) and applicable annexes (e.g., sour service Annex H, offshore Annex J, or higher Charpy test temperature).
- Confirm required Charpy impact test temperature and energy; many operators specify lower than the 0°C default (e.g., -10°C, -20°C depending on design).
- Dimensional tolerances and coating requirements should be stated in the purchase order (e.g., 3LPE, FBE, concrete weight coating).
- Hydrostatic testing and NDE acceptance criteria must be agreed upon; NDE of the seam weld is mandatory for PSL2.
- For welded pipe, the weld metal and heat-affected zone (HAZ) properties shall match the base metal requirements; Charpy samples should be taken from weld/HAZ as agreed.
