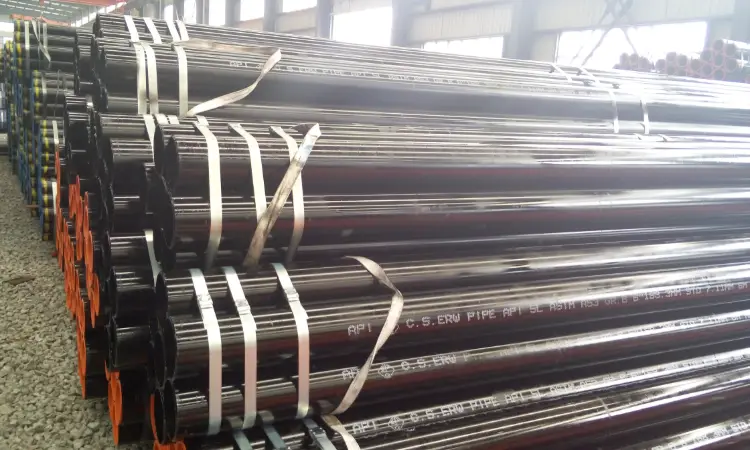

API 5L PSL1 Grade A (L210) Pipeline Steel Plate
API 5L PSL1 Grade A (L210) Pipeline Steel Plate: Chemical, Mechanical & Physical Data
Complete technical profile of API 5L PSL1 Grade A (L210) pipeline steel plate including chemistry, tensile properties, physical constants, and global equivalents for oil & gas transmission.
Hot rolling, normalizing; welding processes: SAW, ERW, or seamless piercing
- Phone : +8618037372205
- Email : [email protected]
- WhatsApp: Contact via Whtsapp
- WeChat: +8618037372205
API 5L PSL1 Grade A Pipeline Steel Plate Introduction
API Spec 5L PSL1 Grade A (L210) is a low-strength carbon steel grade intended for the manufacture of welded and seamless pipe primarily used in the transportation of oil, gas, and water in the petroleum and natural gas industries. As a PSL1 product, it has basic requirements for chemical composition and tensile properties without mandatory Charpy impact testing.
- Key Features: Good weldability, moderate strength (min YS 210 MPa), and cost-effectiveness for general pipeline applications.
- Delivery Condition: Usually supplied in hot-rolled or normalized condition; the plate is used to fabricate longitudinally welded pipe.
- Suitability: Designed for low-pressure and non-sour service environments where stringent toughness is not required.
API 5L PSL1 Grade A Pipeline Steel Plate Chemical Composition
The chemical composition specified by API 5L PSL1 for Grade A (L210) sets maximum limits for carbon and manganese to ensure adequate weldability and strength. Phosphorus and sulfur are controlled to prevent embrittlement.
- No intentional additions of Nb, V, or Ti are required; residual levels are permissible.
- The carbon equivalent (CE) is not mandatory for PSL1 Grade A but is commonly calculated per API formula if specified by purchaser.
| Element | Standard Value (max, %) | Remarks |
|---|---|---|
| C | 0.22 (heat)/0.26 (product) | For product analysis, carbon may be up to 0.26% |
| Mn | 0.90 (heat)/1.05 (product) | Product analysis tolerance allows slightly higher value |
| P | 0.030 | Maximum for all PSL1 grades |
| S | 0.030 | Maximum for all PSL1 grades |
| Si | Not specified | Typically 0.10–0.35% for deoxidation, not a requirement |
API 5L PSL1 Grade A Pipeline Steel Plate Physical & Thermal Properties
The following physical constants are typical for low‑carbon steel in the as‑rolled condition and are not required by the standard. They are useful for design calculations involving heat transfer, stress analysis, and welding.
- Data are approximate and can vary with temperature and exact chemical composition.
| Property | Typical Value | Unit | Test Condition / Remarks |
|---|---|---|---|
| Density (ρ) | 7.85 | g/cm³ | At room temperature |
| Elastic Modulus (E) | 200 | GPa | Tension, ambient |
| Shear Modulus (G) | 77 | GPa | Calculated from E and ν |
| Poisson's Ratio (ν) | 0.30 | – | Ambient |
| Thermal Expansion (α) | 11.7 | 10⁻⁶ / K | 20–100 °C |
| Thermal Conductivity (λ) | 50 | W/(m·K) | At 20 °C |
| Specific Heat Capacity (cₚ) | 486 | J/(kg·K) | 20 °C |
| Electrical Resistivity (ρₑ) | 0.15 | μΩ·m | Ambient |
API 5L PSL1 Grade A Pipeline Steel Plate Mechanical Properties
API 5L PSL1 Grade A requires tensile testing in the transverse direction for welded pipe made from plate. The yield and tensile strengths are moderate, with elongation values depending on wall thickness.
- Hydrostatic test and bend test are required per standard; Charpy impact is not prescribed for PSL1 unless by supplementary order.
- Values below are minimum unless a range is indicated.
| Property | Specification Requirement | Unit | Test Condition |
|---|---|---|---|
| Yield Strength (ReH) min–max | 210–310 | MPa | Transverse strip test; 0.2% offset |
| Tensile Strength (Rm) min–max | 335–475 | MPa | Transverse strip test |
| Elongation (A 50.8 mm), min | 28 | % | Wall thickness 4.6–7.1 mm (0.180–0.280 in) |
| Elongation (A 50.8 mm), min | 27 | % | Wall thickness 7.1–12.7 mm (0.281–0.500 in) |
| Elongation (A 50.8 mm), min | 24 | % | Wall thickness >12.7 mm (>0.500 in) |
| Bend Test (Guided Bend) | No cracks exceeding 3.2 mm (1/8 in.) in any direction | – | 180° bend, diameter as per standard |
API 5L PSL1 Grade A Pipeline Steel Plate Fully Equivalent Standards & Replacable Grades
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| USA / International (API) | API Spec 5L | A (L210) PSL1 | Original standard |
| International | ISO 3183:2019 | L210 PSL1 | Identical strength level |
| European Union | EN 10208-1:2009 | L210GA | Grade A equivalent, pipeline steel |
| China | GB/T 9711-2017 | L210 | PSL1 line pipe |
| Canada | CSA Z245.1-18 | Grade 207 Cat I | Yield 207 MPa, equivalent service |
| Russia | GOST R 52079-2003 | 17GS (К34-К38) | Approximate yield ~210 MPa, needs verification |
API 5L PSL1 Grade A Pipeline Steel Plate Application Introduction
API 5L PSL1 Grade A plate is primarily formed and welded into line pipe for conveying non‑sour fluids at moderate pressure. Its good weldability and low cost make it suitable for:
- Transmission pipelines in oil & gas gathering systems.
- Water mains and distribution piping.
- Structural applications like tubular piling and bollards.
Product Applications: Longitudinally welded pipe (SAWL, ERW), Spiral welded pipe (HSAW), Seamless pipe (when ordered as pipe, not plate), Line pipe for gathering and transmission networks
Processed into products: Straight pipe segments (coated or bare), Pipe fittings (elbows, tees, reducers) fabricated from plate or pipe, Flanges (weld neck or slip-on) matched to Grade A pipe, Tubular structural sections for bridges, offshore platforms, and docks
Application industries: Oil & Gas (upstream and midstream), Water Utilities, Construction (piling and structural supports), Petrochemical (low‑pressure process lines)
API 5L PSL1 Grade A Pipeline Steel Plate Near-equivalent / Similar Substitute Materials
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| USA / API | API Spec 5L | Grade B (L245) PSL1 | Higher strength (YS 245 MPa), commonly used as alternative where slight overdesign is acceptable |
| USA | ASTM A53 | Type E/S Grade A | Pipe with min YS 205 MPa, close to L210 |
| USA | ASTM A106 | Grade A | Seamless pipe, YS 205 MPa, but for high-temperature service |
| Japan | JIS G3454 | STPG370 | YS 215 MPa, similar pressure piping |
| European Union | EN 10208-1 | L245GA | Slightly higher yield, acceptable for many low-pressure lines |
Notes:
- API 5L PSL1 Grade A is not suitable for sour service (H₂S-containing environments) unless specifically qualified; for sour service, PSL2 grades or special tests are required.
- When Charpy impact toughness is needed, the purchaser must specify supplementary requirements or order PSL2 material.
- Welding consumables should match the carbon‑manganese composition of the base material; preheat is usually unnecessary for thicknesses below 30 mm.
