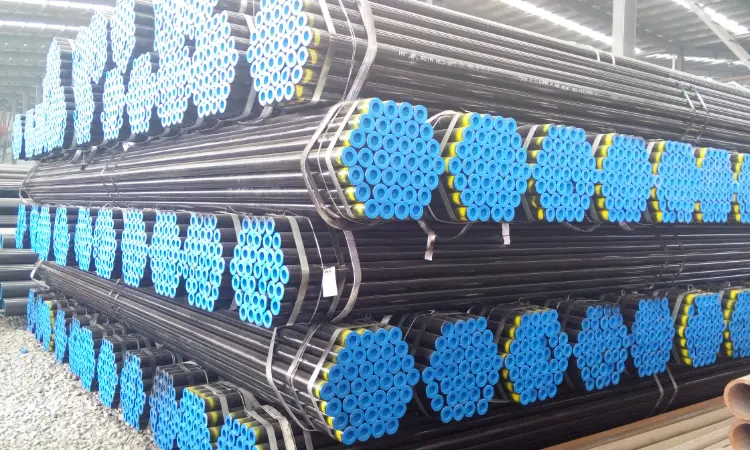

API 5L Grade A Pipeline Steel
API 5L Grade A Pipeline Steel - Reliable Carbon Steel for Low-Pressure Fluid Transmission
API 5L Grade A is a carbon steel line pipe material defined by the American Petroleum Institute for conveying gas, water, and oil in low-pressure applications. It offers good weldability and moderate strength.
Hot rolling, cold drawing, normalizing, welding (for pipe forming), bending, threading
- Phone : +8618037372205
- Email : [email protected]
- WhatsApp: Contact via Whtsapp
- WeChat: +8618037372205
API 5L Grade A Pipeline Steel Introduction
API 5L Grade A (also designated as L210) is a standard carbon steel grade for line pipe used in pipeline transportation systems in the petroleum and natural gas industries. It is specified in the API 5L specification by the American Petroleum Institute. This grade provides a minimum yield strength of 210 MPa (30,500 psi) and is suitable for low-pressure fluid transmission. Key characteristics include:
- Good weldability and formability for pipe manufacturing
- Moderate strength and ductility for general pipeline applications
- Cost-effective solution for non-sour service environments
- Available in seamless and welded pipe forms
Grade A is typically delivered in as-rolled or normalized condition and is widely used in onshore gathering lines, distribution networks, and structural applications.
API 5L Grade A Pipeline Steel Chemical Composition
The chemical requirements for API 5L Grade A are defined to ensure adequate strength and weldability. The following table lists the maximum limits for elements based on heat and product analysis. Values are derived from API 5L standard. Carbon equivalent (CE) may be restricted for weldability.
| Element | Standard Value (max, %) | Remarks |
|---|---|---|
| C (Carbon) | 0.22 | Heat analysis; for product analysis +0.02 allowed |
| Mn (Manganese) | 0.90 | For grades ≤ L210; may be higher for thicker walls |
| P (Phosphorus) | 0.030 | Ensures ductility and toughness |
| S (Sulfur) | 0.030 | Improves machinability but limited for pipeline service |
| Si (Silicon) | Not specified | Typically 0.15–0.35% for killed steel |
| Nb (Niobium) | Optional | ≤0.01% often added for grain refinement |
| V (Vanadium) | Optional | ≤0.05% may be present |
| Ti (Titanium) | Optional | ≤0.04% microalloying allowed |
| Cu (Copper) | ≤0.25 | Residual; may be specified for corrosion resistance |
| Ni (Nickel) | ≤0.30 | Residual |
| Cr (Chromium) | ≤0.30 | Residual |
| Mo (Molybdenum) | ≤0.15 | Residual |
| Al (Aluminum) | ≥0.015 or 0.020 | Typically required for fine grain practice |
API 5L Grade A Pipeline Steel Thermal and Electrical Physical Properties
Physical properties are not mandated by API 5L and are provided as typical values for carbon steel at room temperature unless otherwise noted. These values aid in design calculations for thermal expansion, heat transfer, and weight estimation.
| Property | Typical Value | Unit | Test Condition |
|---|---|---|---|
| Density (ρ) | 7.85 | g/cm³ | At 20°C |
| Elastic Modulus (E) | 205 | GPa | At 20°C; decreases at elevated temperatures |
| Shear Modulus (G) | 80 | GPa | Calculated from E and Poisson's ratio |
| Poisson's Ratio (ν) | 0.30 | - | Within elastic range |
| Thermal Expansion Coefficient (α) | 11.7 – 12.5 | 10⁻⁶/°C | For 20–100°C range |
| Thermal Conductivity (λ) | 49 – 51 | W/(m·K) | At 50°C |
| Specific Heat Capacity | 486 | J/(kg·K) | At 50–100°C |
| Electrical Resistivity (ρ_e) | 0.15 – 0.18 | μΩ·m | At 20°C; increases with temperature |
API 5L Grade A Pipeline Steel Mechanical Properties
The mechanical properties of API 5L Grade A pipe are specified for the pipe body and weld seam. Tensile testing is performed on a transverse strip specimen. Impact tests (Charpy V-notch) are not mandatory for Grade A unless specified by supplementary requirements. Values vary with pipe size and wall thickness.
| Property | Standard Requirement | Unit | Test Condition |
|---|---|---|---|
| Yield Strength (ReH) | 210 – 310 | MPa | Transverse to pipe axis, 0.5% extension under load |
| Tensile Strength (Rm) | ≥ 335 | MPa | Transverse strip specimen |
| Elongation (A) | As per formula: A = 1940 * (Aₓ⁰.² / U⁰.⁹) or Table 1; typically ≥ 22% | % | Gauge length 50 mm (2 in), full-section or strip |
| Bend Test | No cracks; diameter as per standard | - | Cold bend through 180° around a pin diameter dependent on wall thickness |
| Charpy Impact (KV) | Not normally required; optional SR5 may specify e.g., ≥ 27 J at 0°C | J | Full-size, transverse specimen, if ordered |
API 5L Grade A Pipeline Steel Fully Equivalent Material Standards and Substitutable Grades
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| International | ISO 3183 | L210 | Identical technical requirements for PLS1 pipe |
| Europe | EN 10208-1 | L210GA | Basic class, non-sour service gas pipelines |
| China | GB/T 9711 | L210 | Class I or II, matches API 5L Grade A |
| Canada | CSA Z245.1 | Grade 210 | Equivalent requirements for line pipe |
| Russia | GOST 20295 | K34 | Approximate, check yield strength |
| Japan | JIS G 3452 / JIS G 3454 | SGP / STPG370 | SGP is similar carbon steel pipe, but STPG370 has higher strength |
API 5L Grade A Pipeline Steel Application Introduction
API 5L Grade A is predominantly used in low-pressure fluid transportation systems. Its excellent weldability and good formability allow for efficient construction and installation. The material is not intended for sour service (H₂S-containing environments) unless specifically qualified. Typical applications include:
Product Applications: Line pipe for onshore pipelines, Flowlines in oil fields, Water injection lines, Casing and conductor pipe (low-stress), Spiral-welded pipe for large-diameter water mains
Processed into products: Pipe sections (straight, random lengths), Reducers, tees, and elbows (fabricated from pipe), Pipe piles, Conduit for electrical cables (rigid steel), Handrails and guardrails (structural)
Application industries: Oil & Gas (upstream and midstream gathering), Water distribution and transmission, Construction and infrastructure (piling, structural supports), Mining and slurry transport, Firefighting systems
API 5L Grade A Pipeline Steel Similar or Alternative Steel Grades for Reference
The following grades are not exact equivalents but may be considered for similar service conditions with appropriate engineering assessment.
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| USA | API 5L | Grade B (L245) | Higher strength, more common; often substitutes for Grade A with design adjustments |
| USA | ASTM A53 | Grade A | Structural and pressure piping, similar strength, different standard |
| USA | ASTM A106 | Grade A | Seamless carbon steel for high-temperature service; similar composition |
| Europe | EN 10208-1 | L245GA | Next higher strength grade in EN standard |
| Europe | EN 10216-1 | P235TR1 | Seamless, for pressure purposes; comparable tensile properties |
| China | GB/T 3091 | Q235A | General structural carbon steel pipe; lower toughness requirements |
Notes:
API 5L Grade A is typically supplied with a mill test report (MTR) certifying chemical and mechanical compliance. For circumferential welds, compatibility with standard welding procedures (e.g., SMAW, GMAW) should be verified. Not recommended for high-pressure or sour service applications without additional testing. Supplementary requirements (SR) may be invoked for notch toughness, non-destructive inspection, or stricter chemistry.
