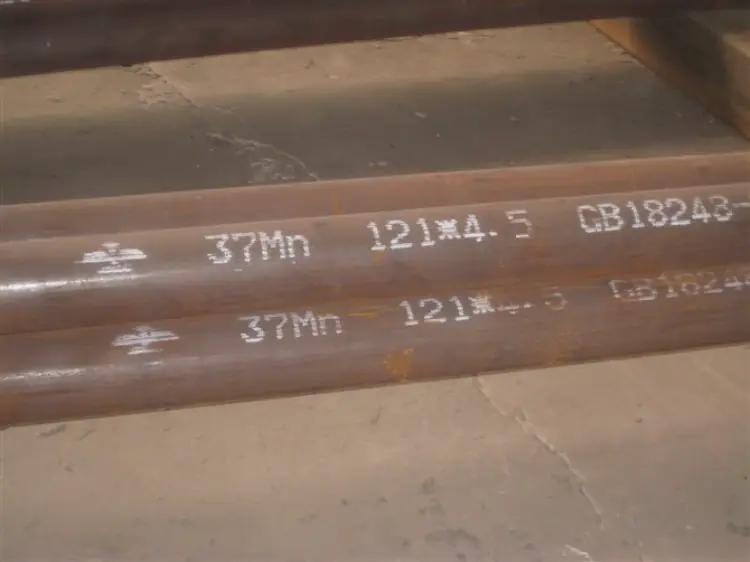

37Mn Seamless Steel Pipes for High-Pressure Gas Cylinders
37Mn Seamless Steel Pipes for High-Pressure Gas Cylinders: GB/T 18248 Standard
Comprehensive analysis of 37Mn alloy steel under GB/T 18248 for seamless air bottle pipes, covering chemical composition, mechanical strength, and thermal properties for high-pressure applications.
Hot Rolling, Cold Drawing, Quenching and Tempering (Q&T), Normalizing
- Phone : +8618037372205
- Email : [email protected]
- WhatsApp: Contact via Whtsapp
- WeChat: +8618037372205
37Mn Seamless Steel Pipes for High-Pressure Gas Cylinders Introduction
37Mn is a high-quality carbon-manganese steel specified in GB/T 18248 for the manufacture of seamless steel tubes used in high-pressure gas cylinders (air bottles). It is designed to offer an optimized balance of high tensile strength, good yield strength, and excellent toughness, particularly at low temperatures, which is critical for safety in pressurized gas storage and transport. The controlled chemistry with elevated Manganese content enhances hardenability and strength without significantly compromising weldability and formability. This steel is typically produced via hot rolling or cold drawing followed by a specific heat treatment, usually quenching and tempering, to meet stringent mechanical requirements. It is predominantly used in the Chinese market but has international equivalents for global engineering applications.
37Mn Seamless Steel Pipes for High-Pressure Gas Cylinders Chemical Composition
The chemical composition of 37Mn under GB/T 18248-2008 is precisely controlled to ensure deep hardenability and consistent mechanical response during heat treatment. The Manganese content is kept high to increase strength and wear resistance, while impurities like Phosphorus and Sulfur are strictly limited to ensure high purity and isotropic toughness. Trace elements are not specified but are controlled by the steelmaking practice.
| Element | Standard Value (wt%) | Remarks |
|---|---|---|
| Carbon (C) | 0.34 – 0.40 | Key element for strength and hardenability |
| Silicon (Si) | 0.17 – 0.37 | Deoxidizing element, contributes to strength |
| Manganese (Mn) | 1.40 – 1.80 | Main strengthening alloying element |
| Phosphorus (P) | ≤ 0.020 | Controlled impurity for enhanced toughness |
| Sulfur (S) | ≤ 0.015 | Controlled impurity for improved ductility |
| Chromium (Cr) | ≤ 0.30 | Residual element, no intentional addition required |
| Nickel (Ni) | ≤ 0.30 | Residual element, no intentional addition required |
| Copper (Cu) | ≤ 0.20 | Residual element, no intentional addition required |
| Molybdenum (Mo) | ≤ 0.10 | Residual element |
| Iron (Fe) | Balance |
37Mn Seamless Steel Pipes for High-Pressure Gas Cylinders Thermal and Electrical Physical Properties
Physical properties are evaluated at ambient temperature and elevated temperatures. These values are essential for finite element analysis (FEA), heat transfer calculations during welding, and assessing the vessel's behavior under thermal cycling. The density is a standard value for low-alloy carbon steel, while thermal conductivity and resistivity are influenced by the Mn content and heat treatment state.
| Property | Standard / Typical Value | Unit | Test Condition |
|---|---|---|---|
| Density (ρ) | ~7.83 | g/cm³ | At 20 °C |
| Elastic Modulus (E) | ~210 | GPa | At 20 °C |
| Shear Modulus (G) | ~81 | GPa | At 20 °C (Calculated) |
| Poisson's Ratio (ν) | ~0.29 | - | At 20 °C |
| Thermal Expansion Coefficient (α) | ~12.1 | 10⁻⁶/K | 20 – 100 °C |
| Thermal Expansion Coefficient (α) | ~13.9 | 10⁻⁶/K | 20 – 400 °C |
| Thermal Conductivity (λ) | ~42.5 | W/(m·K) | At 20 °C |
| Specific Heat Capacity (c) | ~461 | J/(kg·K) | At 20 °C |
| Electrical Resistivity (ρₑ) | ~0.25 | Ω·mm²/m | At 20 °C |
37Mn Seamless Steel Pipes for High-Pressure Gas Cylinders Mechanical Properties
The mechanical properties for GB/T 18248 37Mn pipes are validated on a Quenched and Tempered (+QT) microstructure. These values are strictly required for safety certification of gas cylinders. The specified yield strength is the minimum guaranteed value for design calculations, while the elongation and impact toughness ensure the vessel can withstand rapid pressure fluctuations and accidental physical impacts without catastrophic brittle failure.
| Property | Standard Requirement Value | Unit | Test Condition / Remark |
|---|---|---|---|
| Upper Yield Strength (ReH) | ≥ 650 | MPa | Room Temperature, Tested on longitudinal specimen |
| Tensile Strength (Rm) | 800 – 950 | MPa | Room Temperature, Tested on longitudinal specimen |
| Elongation after Fracture (A) | ≥ 12 | % | Longitudinal specimen, gauge length 5.65√S₀ (A5) |
| Impact Energy (KV₂) | ≥ 40 | J | At -20 °C, Charpy V-notch, transverse specimen (Typical high requirement) |
| Impact Energy (KV₂) | ≥ 27 | J | At -50 °C, Charpy V-notch, transverse specimen (For specific low-temp applications) |
| Bend Test (Mandrel Diameter) | No cracks or breaks | Bend angle 180°, d=4a (where 'a' is wall thickness) |
37Mn Seamless Steel Pipes for High-Pressure Gas Cylinders Complete Equivalent Standards and Replaceable Grades
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| China | GB/T 18248 | 37Mn | Original standard; dominant for CNG cylinders in domestic market. |
| International | ISO 9809-1 | Design Approval Material | 37Mn chemical composition falls within the allowed limits for CMn steels in ISO gas cylinder standards, subject to design approval. |
| USA | DOT 3AA / 3AL | Based on 4130X (Modified) | In US regulation, cylinders with similar strength use 4130X. 37Mn is not a direct 1:1 match but fulfills the same mechanical function for equivalent wall thickness designs. |
37Mn Seamless Steel Pipes for High-Pressure Gas Cylinders Application Introduction
37Mn is specifically engineered for stationary and mobile high-pressure gas storage. It excels in cyclic fatigue life required for repeated filling and emptying of gas cylinders. Proper heat treatment (quenching and tempering) is critical to achieve the desired Martensitic/Bainitic structure without hard spots.
Product Applications: Type I Seamless Steel Gas Cylinders (Fully Wrapped), Type II Hoop-Wrapped Cylinders (Steel Liner), Compressed Natural Gas (CNG) Tube Trailers, Breathing Air Cylinders (SCBA), Industrial Fixed Storage Cascades
Processed into products: Cylinder Body (Neckless or with neck ring), Spun-Domed Ends (Integral cold-formed ends), Seamless High-Pressure Tube Sections, Accumulator Shells for Hydraulic Systems, Gas Transport Modules for Ships
Application industries: Alternative Fuel Vehicles (CNG & Hydrogen Storage), Industrial Gas Production and Distribution, Medical Oxygen Supply Systems, Firefighting and Life Support Equipment, Aerospace (Accumulator bottles)
37Mn Seamless Steel Pipes for High-Pressure Gas Cylinders Similar / Alternative Materials for Cross-Reference
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| China / Germany | EN 10297-1 / GB/T 8162 | 34CrMo4 (1.7220) | Offers better heat resistance and slightly higher strength levels if low-temperature toughness is satisfied. Often used in larger industrial cylinders. |
| China / USA | GB/T 3077 / ASTM A519 | 30CrMo (4130) | Lower carbon content than 37Mn results in better weldability and cold-forming properties, but with slightly lower strength in the non-heat-treated condition. |
| China | GB/T 18248 | 30CrMoSiA | A higher-performance steel used in premium cylinders for aircraft or high-pressure breathing apparatus where weight saving is critical. |
| Japan | JIS G3429 | STH22 | Low-alloy steel standard for seamless high-pressure gas cylinders. The mechanical properties overlap with 37Mn when properly heat-treated. |
Notes:
Strict adherence to GB/T 18248 is mandatory for safety-critical applications. NDE (Non-Destructive Evaluation) such as ultrasonic testing (UT) or eddy current testing (ET) is required for 100% of the pipe body to ensure quality. Processing into cylinders requires strict control of the wall thinning during the hot spinning process of the ends. Any welding on the cylindrical part is prohibited in seamless air bottle construction.
