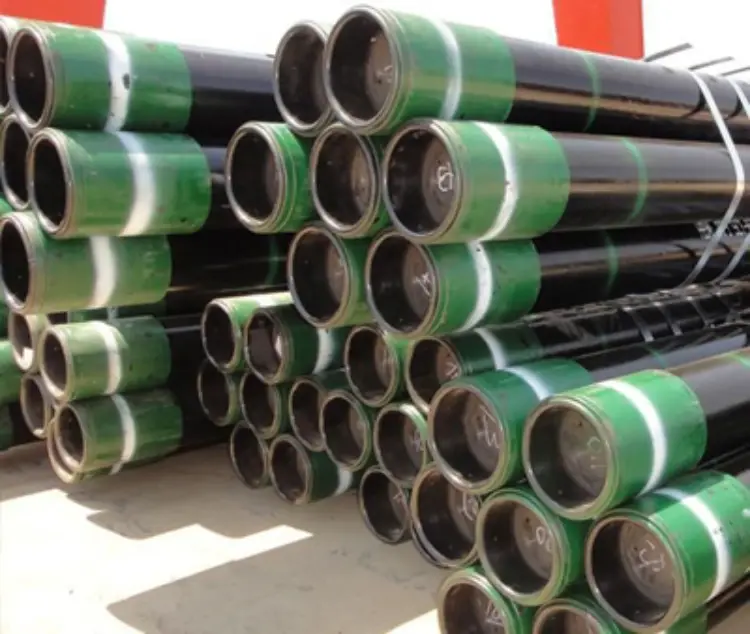

20# Carbon Steel Seamless Pipe for Automotive & Mechanical Structures
20# Carbon Steel Seamless Pipe for Automotive & Mechanical Structures - GB/T 8162
Comprehensive data on 20# carbon steel seamless pipe under GB/T 8162: chemistry, mechanical & thermal properties, equivalent grades, and typical uses in automotive and mechanical engineering.
Hot rolling, cold drawing, normalizing, machining, welding, bending
- Phone : +8618037372205
- Email : [email protected]
- WhatsApp: Contact via Whtsapp
- WeChat: +8618037372205
20# Carbon Steel Seamless Pipe for Automotive & Mechanical Structures Introduction
20# steel is a high-quality carbon structural steel widely specified for seamless pipes in automotive and mechanical applications. It offers a balanced combination of strength, ductility, and weldability. Under GB/T 8162, the pipe is manufactured with tight dimensional tolerances and delivered in hot-rolled or cold-drawn condition, ensuring reliable performance in structural components such as frames, hydraulic cylinders, and machine parts. Its carbon content (0.17-0.23%) provides moderate hardenability, while the low impurity limits guarantee consistent mechanical behavior.
20# Carbon Steel Seamless Pipe for Automotive & Mechanical Structures Chemical Composition
The chemical composition of 20# seamless pipe under GB/T 8162 follows the requirements of GB/T 699 for quality carbon structural steels. Tight control of phosphorus and sulfur ensures good ductility and weldability. Residual elements Cr, Ni, and Cu are limited to avoid adverse effects on hot workability and surface quality.
| Element | Standard value | Remarks |
|---|---|---|
| C | 0.17 – 0.23 | Key strengthening element |
| Si | 0.17 – 0.37 | Deoxidizer |
| Mn | 0.35 – 0.65 | Improves strength and hardenability |
| P | ≤ 0.035 | Maximum limit for ductility |
| S | ≤ 0.035 | Maximum limit for machinability and toughness |
| Cr | ≤ 0.25 | Residual element |
| Ni | ≤ 0.30 | Residual element |
| Cu | ≤ 0.25 | Residual element |
20# Carbon Steel Seamless Pipe for Automotive & Mechanical Structures Thermal and Electrical Physical Properties
These physical properties are representative for 20# carbon steel in the annealed or normalized condition. They are not directly mandated by the product standard but are widely used in engineering calculations. Values may vary slightly depending on exact composition and heat treatment history.
| Property | Typical value | Unit | Test condition |
|---|---|---|---|
| Density (ρ) | 7.85 | g/cm³ | Room temperature |
| Modulus of elasticity (E) | 206 | GPa | Room temperature |
| Shear modulus (G) | 79.3 | GPa | Room temperature |
| Poisson's ratio (ν) | 0.30 | - | Room temperature |
| Coefficient of thermal expansion (α) | 11.5 | 10⁻⁶ /K | 20 – 100 °C |
| Coefficient of thermal expansion (α) | 12.6 | 10⁻⁶ /K | 20 – 200 °C |
| Coefficient of thermal expansion (α) | 13.7 | 10⁻⁶ /K | 20 – 400 °C |
| Thermal conductivity (λ) | 51.9 | W/(m·K) | 100 °C |
| Specific heat capacity | 486 | J/(kg·K) | Room temperature |
| Electrical resistivity (ρ_e) | 0.17 | μΩ·m | Room temperature |
20# Carbon Steel Seamless Pipe for Automotive & Mechanical Structures Mechanical Properties
Mechanical properties are specified for 20# seamless pipe in the delivery condition according to GB/T 8162. The values below apply to room temperature testing. For hot-rolled pipes or after appropriate heat treatment, the steel exhibits moderate yield strength and good elongation, making it suitable for cold forming and structural fabrication.
| Property | Standard requirement | Unit | Test condition |
|---|---|---|---|
| Tensile strength (Rm) | ≥ 390 | MPa | Room temperature |
| Yield strength (ReH) | ≥ 245 | MPa | Wall thickness ≤ 16 mm; room temperature |
| Elongation after fracture (A) | ≥ 20 | % | Longitudinal; room temperature |
| Bend test (bend diameter) | d = 2a (bend angle 180°) | - | Wall thickness ≤ 16 mm; no cracks allowed |
| Bend test (bend diameter) | d = 2.5a (bend angle 180°) | - | Wall thickness 16 - 30 mm |
| Impact energy (KV) | Not specified in GB/T 8162 | - | May be agreed upon between purchaser and manufacturer |
20# Carbon Steel Seamless Pipe for Automotive & Mechanical Structures Fully Equivalent Material Standards and Substitutable Grades
| Country / Region | Standard | Grade | Remarks |
|---|---|---|---|
| China | GB/T 8162-2018 | 20 | Original specification for seamless structural pipes; direct equivalent |
| International | - | - | No completely identical international grade exists; see similar materials below for practical substitutes |
20# Carbon Steel Seamless Pipe for Automotive & Mechanical Structures Application Introduction
20# seamless pipe under GB/T 8162 is exceptionally versatile. Its reliable weldability, moderate strength, and good formability make it a standard choice for structural and mechanical components. It can be readily machined, bent, and welded without special preheating (for thin sections), and is often used in the as-supplied condition or after normalizing.
Product Applications: Seamless steel structural tubes (round, square, rectangular), Cold-drawn precision tubes for hydraulic cylinders, Axle tubes and propeller shaft tubes, Machined bushings, sleeves, and spacers, Welded tube assemblies
Processed into products: Automotive subframes and crossmembers, Hydraulic cylinder barrels and piston rods, Axle housings, Steering knuckles and suspension arms, Bushings and bearing housings, Structural supports and brackets in machinery, Roll-over protection structures (ROPS)
Application industries: Automotive manufacturing (frames, chassis, roll cages), Construction and earth-moving machinery, Hydraulic and pneumatic systems, Agricultural equipment, General mechanical engineering, Bicycle and motorcycle frames
20# Carbon Steel Seamless Pipe for Automotive & Mechanical Structures Similar / Alternative Grade Recommendations
| Country / Region | Standard | Grade | Remarks |
|---|---|---|---|
| China | GB/T 699 | 20 (bars & forgings) | Same chemical composition; mechanicals may differ slightly due to product form |
| USA | ASTM A106 | Grade B | Seamless carbon steel pipe for high-temperature service; comparable carbon range, higher Mn, similar tensile requirements |
| Japan | JIS G3454 | STPG 370 | Carbon steel pipes for pressure service; yield strength ~215 MPa min, tensile ≥370 MPa, elongation ≥30%; slightly lower strength but good toughness |
| Germany | DIN 17175 | St35.8 | Seamless steel tubes for elevated temperatures; C ≤0.17, yield ≥235 MPa, tensile 360-480 MPa; often used in boiler applications |
| European | EN 10297-1 | E235 (1.0308) | Seamless circular steel tubes for mechanical and general engineering purposes; close to 20# in carbon level and mechanical properties |
Notes:
Heat treatment: 20# steel can be normalized at 880-900 °C to refine grain structure and improve toughness. Welding: Suitable for all common welding processes; preheating recommended for thick sections (>25 mm) to avoid hardening in the heat-affected zone. Surface treatment: Often supplied phosphated or oiled for temporary corrosion protection. Note on the input standard: The user query included "GB/T3077 20#", but 20# is not covered by GB/T 3077 (alloy structural steels); the correct standard for 20# structural seamless pipe is GB/T 8162, which relies on GB/T 699 for chemical composition. All data above refer to the appropriate standard.
