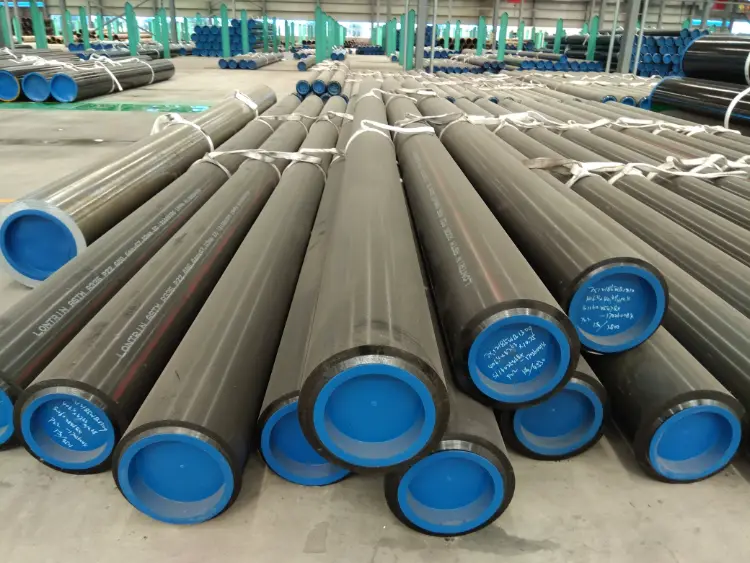

SA335 P12 Alloy Steel Pipe
ASME SA335 P12 Alloy Steel Boiler Pipe: Chemical, Mechanical & Equivalent Grades
Complete data sheet for ASME SA335 P12 ferritic alloy steel boiler pipe: chemical composition, mechanical and physical properties, international equivalent standards and application guide.
Hot finished or cold finished, suitable for welding, bending, expanding, and flanging
- Phone : +8618037372205
- Email : [email protected]
- WhatsApp: Contact via Whtsapp
- WeChat: +8618037372205
SA335 P12 Alloy Steel Pipe Introduction
ASME SA335 P12 is a seamless ferritic alloy steel pipe specifically designed for high-temperature service in boilers and superheaters. This grade belongs to the 1Cr-0.5Mo family, offering an excellent balance of creep strength, oxidation resistance up to approximately 550 °C (1020 °F), and good weldability. The nominal chemistry of 1% chromium and 0.5% molybdenum provides improved heat resistance compared to plain carbon steels while maintaining acceptable toughness.
- Standardized under ASME SA-335/SA-335M for seamless ferritic alloy-steel pipe for high-temperature service.
- Widely used in power generation, petrochemical, and refinery industries.
- Supplied in normalized and tempered condition to ensure consistent mechanical properties and microstructure.
SA335 P12 Alloy Steel Pipe Chemical Composition
Heat analysis according to ASME SA-335/SA-335M. The steel is a 1Cr-0.5Mo grade with controlled residuals.
- Cr and Mo are the primary alloying elements for high-temperature strength and oxidation resistance.
- Low carbon content ensures good weldability and ductility.
- Phosphorus and sulfur are strictly limited to enhance toughness and cleanliness.
| Chemical Element | Standard Value (wt%) | Remarks |
|---|---|---|
| Carbon (C) | 0.05 - 0.15 | Ladle analysis |
| Manganese (Mn) | 0.30 - 0.61 | Ladle analysis |
| Phosphorus (P) | ≤ 0.025 | Max |
| Sulfur (S) | ≤ 0.025 | Max |
| Silicon (Si) | ≤ 0.50 | Max |
| Chromium (Cr) | 0.80 - 1.25 | Ladle analysis |
| Molybdenum (Mo) | 0.44 - 0.65 | Ladle analysis |
| Iron (Fe) | Balance (approx. 97 – 98) | Remainder |
SA335 P12 Alloy Steel Pipe Thermal and Electrical Physical Properties
Representative physical properties for 1Cr-0.5Mo steel (P12 grade) at room temperature unless otherwise noted.
- Density, moduli, and thermal expansion are critical for design and stress analysis.
- Thermal conductivity and specific heat are given for heat transfer calculations.
- Actual values may vary slightly depending on heat treatment and temperature.
| Property | Typical Value | Unit | Test Condition / Temperature |
|---|---|---|---|
| Density (ρ) | 7.85 | g/cm³ | 20 °C |
| Elastic Modulus (E) | 210 | GPa | 20 °C |
| Shear Modulus (G) | 81 | GPa | Calculated from E and ν |
| Poisson's Ratio (ν) | 0.30 | - | 20 °C |
| Thermal Expansion Coeff. (α) | 11.2 | 10⁻⁶ /K | 20 – 100 °C |
| Thermal Expansion Coeff. (α) | 13.7 | 10⁻⁶ /K | 20 – 500 °C |
| Thermal Conductivity (λ) | 45 | W/(m·K) | 20 °C |
| Thermal Conductivity (λ) | 38 | W/(m·K) | 300 °C |
| Thermal Conductivity (λ) | 33 | W/(m·K) | 500 °C |
| Specific Heat Capacity | 460 | J/(kg·K) | 20 °C |
| Electrical Resistivity (ρ_e) | 0.20 | Ω·mm²/m | 20 °C |
SA335 P12 Alloy Steel Pipe Mechanical Properties
Minimum tensile and yield strength requirements at room temperature per ASME SA-335/SA-335M for P12 tubes in normalized and tempered condition.
- Values are for longitudinal specimens from wall thickness ≤ 7.94 mm (0.3125 in).
- Elongation requirements may vary with wall thickness; a minimum longitudinal elongation of 30% is typical for thin-walled pipe.
- Hardness is not a mandatory requirement but typically does not exceed 174 HBW after NT treatment.
| Property | Standard Requirement | Unit | Test Condition |
|---|---|---|---|
| Tensile Strength (Rm) | ≥ 415 (min 60 ksi) | MPa (ksi) | Room temperature |
| Yield Strength (ReH 0.2% offset) | ≥ 220 (min 32 ksi) | MPa (ksi) | Room temperature |
| Elongation (A), longitudinal | ≥ 30 | % | Gauge length 50 mm (2 in), or per formula A=560000/TS^0.85 |
| Elongation (A), transverse | ≥ 22 | % | Gauge length 50 mm (2 in) |
| Hardness, typical | ≤ 174 | HBW | Not mandatory by standard; typical after NT |
| Impact Toughness (KV) | - | J | Not specified; tested by agreement for low-temperature service |
SA335 P12 Alloy Steel Pipe Exact Equivalent Standards and Replaceable Grades
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| USA / International | ASTM A335/A335M | P12 | Identical to ASME SA-335 P12 |
| European Union | EN 10216-2 | 13CrMo4-5 (1.7335) | Chemically and mechanically equivalent |
| Germany | DIN 17175 | 13CrMo44 | Withdrawn but historically identical |
| Japan | JIS G3458 | STPA22 | Equivalent for alloy steel pipes for high-temperature service |
| United Kingdom | BS 3604-1 | 620-460 | Equivalent grade (former BS). Current preferred is EN 10216-2 |
| China | GB/T 5310 | 15CrMoG | Minor compositional differences; generally accepted as equivalent |
SA335 P12 Alloy Steel Pipe Application Introduction
SA335 P12 is utilized where good creep strength and oxidation resistance are required up to approximately 550 °C (1020 °F). Its 1% Cr content offers improved scaling resistance over carbon steel, and the Mo addition provides solid solution strengthening. Typical applications include:
- Power generation: boiler water wall tubes, superheater and reheater tubes, steam piping.
- Petrochemical industry: refinery heater tubes, heat exchanger tubes for high-temperature hydrocarbon processing.
- Pressure vessels: internal coils and heating elements.
Product Applications: Boiler and superheater tube bundles, Seamless high-pressure steam lines, Refinery furnace coils, Heat recovery steam generator (HRSG) tubes, Crossover pipes and steam headers
Processed into products: Water wall tubes, Superheater pendant tubes, Reheater tubes, Economizer tubes (when design temperature exceeds carbon steel limit), Steam manifold sections, Tube bends and elbows for high-temperature piping
Application industries: Power generation (fossil fuel & nuclear thermal steam loops), Petrochemical and refinery, Chemical processing, Industrial boiler manufacturing, Heat exchanger and pressure vessel fabrication
SA335 P12 Alloy Steel Pipe Similar / Alternative Material Recommendations
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| USA | ASTM A335/A335M | P11 | 1.25Cr-0.5Mo; slightly higher Cr for better oxidation resistance at similar strength |
| USA | ASTM A335/A335M | P22 | 2.25Cr-1Mo; higher strength and corrosion resistance at elevated temperatures |
| EU | EN 10216-2 | 10CrMo5-5 (1.7338) | 0.5Mo steel without Cr; lower temperature capability but more economical |
| EU | EN 10216-2 | 16Mo3 (1.5415) | Carbon-molybdenum steel; used for moderate temperatures |
| Japan | JIS G3458 | STPA20 | 0.5Mo grade; alternative for less severe conditions |
Notes:
Welding and fabrication: P12 has good weldability with preheat at 150–300 °C and post-weld heat treatment (PWHT) at 660–700 °C to relieve stress. Service limitations: Long-term exposure above 550 °C may lead to graphitization; consider 1.25Cr grades (P11) or 2.25Cr (P22) for higher temperatures. Testing: Besides tension tests, hydrostatic or nondestructive electric tests are mandatory per ASTM A999/A999M and SA-335. Availability: Commonly available in diameters from 1/2 in. to 24 in. and wall thicknesses from Sch 10 to Sch XXH.
