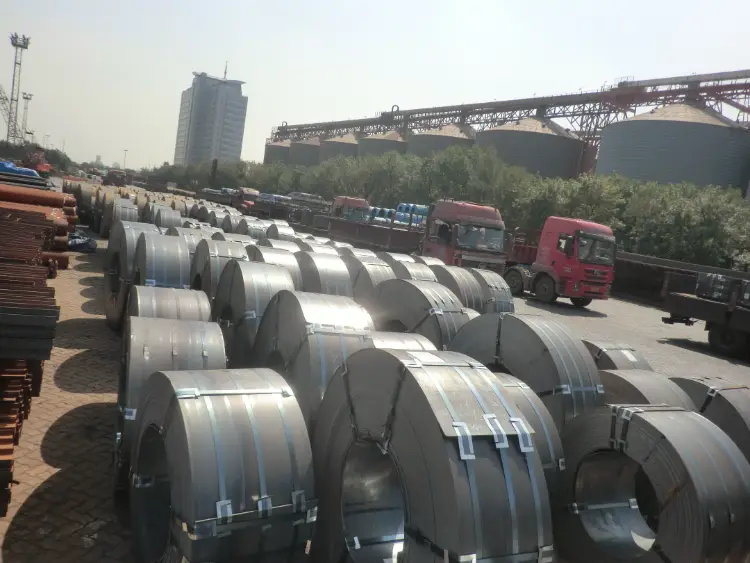

ASTM A588 Grade A Weathering Steel Coil
ASTM A588 Grade A Weathering Steel Coil - High-Strength Low-Alloy with Atmospheric Corrosion Resistance
Comprehensive material data for ASTM A588/A588M Grade A low-alloy high-strength steel coil, including chemical composition, mechanical properties, thermal and electrical properties, international equivalents, and application examples.
Hot rolling; cold forming; shearing; welding (all common methods); machining; bending; suitable for bolted or riveted connections.
- Phone : +8618037372205
- Email : [email protected]
- WhatsApp: Contact via Whtsapp
- WeChat: +8618037372205
ASTM A588 Grade A Weathering Steel Coil Introduction
ASTM A588 Grade A is a high-strength low-alloy structural steel with enhanced atmospheric corrosion resistance, categorized as a weathering steel. It is primarily supplied in coil form but also available as plate, bar, and structural shapes. The steel develops a protective oxide layer (patina) upon exposure to the atmosphere, significantly reducing the need for painting in many environments. Key characteristics include a minimum yield strength of 50 ksi (345 MPa), good weldability, and excellent toughness at ambient temperatures. Its chemical composition, enriched with copper, chromium, and vanadium, imparts the self-protecting corrosion resistance that makes it suitable for unpainted applications in bridges, building facades, and transmission towers. This material is widely specified under ASTM A588/A588M and equivalent international standards, ensuring global availability and interchangeability.
ASTM A588 Grade A Weathering Steel Coil Chemical Composition
The chemical composition of ASTM A588 Grade A is designed to provide improved atmospheric corrosion resistance through the addition of copper, chromium, and vanadium. The table lists the maximum allowable or range limits as per ASTM A588/A588M. These elements promote the formation of a dense, adherent oxide patina that slows further corrosion. Note: Values are from the standard; minor variations may occur in product analysis.
| Element | Standard Value (wt%) | Remarks |
|---|---|---|
| Carbon (C) | 0.19 max | Contributes to strength; lower carbon enhances weldability. |
| Manganese (Mn) | 0.80–1.25 | Improves strength and hardenability. |
| Phosphorus (P) | 0.04 max | Residual element; kept low for toughness. |
| Sulfur (S) | 0.05 max | Residual element; controlled for cleanliness. |
| Silicon (Si) | 0.30–0.65 | Deoxidizer and strength contributor. |
| Copper (Cu) | 0.25–0.40 | Primary element for atmospheric corrosion resistance. |
| Nickel (Ni) | 0.40 max | Enhances toughness and weather resistance when combined with Cu. |
| Chromium (Cr) | 0.40–0.65 | Promotes formation of protective oxide layer. |
| Vanadium (V) | 0.02–0.10 | Micro-alloying for grain refinement and strength. |
ASTM A588 Grade A Weathering Steel Coil Thermal and Electrical Physical Properties
The following physical properties are typical for low-alloy steel at room temperature and may vary slightly depending on exact composition and heat treatment. These values are not mandatory in ASTM A588 but are representative for engineering calculations. Density, elastic moduli, and thermal expansion are similar to those of standard carbon structural steels. The electrical resistivity is moderately higher than pure iron due to alloying elements. Data are sourced from published literature and steel manufacturer datasheets.
| Property | Typical Value | Unit | Test Condition / Temperature |
|---|---|---|---|
| Density (ρ) | 7.85 | g/cm³ | Room temperature |
| Elastic Modulus (E) | 200 | GPa | Tension, room temperature |
| Shear Modulus (G) | 80 | GPa | Calculated from E and Poisson's ratio |
| Poisson's Ratio (ν) | 0.3 | — | Elastic range, room temperature |
| Thermal Expansion Coefficient (α) (20–100°C) | 11.7 × 10⁻⁶ | K⁻¹ | Linear expansion |
| Thermal Expansion Coefficient (α) (20–300°C) | 12.6 × 10⁻⁶ | K⁻¹ | Linear expansion |
| Thermal Conductivity (λ) | 51.9 | W/(m·K) | At 20°C |
| Specific Heat Capacity (cp) | 486 | J/(kg·K) | At 20°C |
| Electrical Resistivity (ρe) | 0.16 × 10⁻⁶ | Ω·m | At 20°C (approx. 16 μΩ·cm) |
ASTM A588 Grade A Weathering Steel Coil Mechanical Properties
Mechanical properties for ASTM A588 Grade A steel coil are based on tensile testing of full-thickness specimens in the as-rolled or normalized condition. The values represent minimum requirements unless otherwise noted. Yield strength and tensile strength are specified for product thicknesses up to 4 in. (100 mm). For thinner coil products, the same minima apply. Elongation varies with gauge length and thickness; the table provides typical values for a common thickness range. A cold-bend test is mandatory to verify ductility.
| Property | Minimum Value | Unit | Test Condition / Remarks |
|---|---|---|---|
| Yield Strength (ReH) | 345 [50] | MPa [ksi] | 0.2% offset; applicable up to 4 in. thickness; as-rolled or normalized. |
| Tensile Strength (Rm) | 485 [70] | MPa [ksi] | Ultimate tensile strength; applicable up to 4 in. thickness. |
| Elongation (A) in 50 mm (2 in.) | 18 | % | For strip thickness ≤ 6.35 mm (0.25 in.); gauge length 50 mm. |
| Elongation (A) in 200 mm (8 in.) | 18 | % | For strip thickness ≤ 6.35 mm; gauge length 200 mm. |
| Bend Test (180°) | No cracks on outside of bent portion | — | Bend diameter = 1.5 × thickness for plates ≤ 0.5 in. (12.7 mm); higher ratios for thicker sections as per ASTM A588. |
ASTM A588 Grade A Weathering Steel Coil Completely Equivalent Material Standards and Substitute Grades
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| USA | ASTM A588/A588M | Grade A | Original specification; minimum yield 50 ksi (345 MPa) with atmospheric corrosion resistance. |
| European Union | EN 10025-5 | S355J2W | Closest equivalent; also a weathering steel with similar strength; Charpy V-notch impact at -20°C (J2) is additional but can be ordered; chemistry differs slightly (e.g., Cu min 0.25–0.55). |
| Japan | JIS G 3114 | SMA490AW | Welded structural steel with atmospheric corrosion resistance; yield ≥ 365 MPa for thickness ≤ 16 mm; A588 Gr. A is commonly accepted as alternate. |
| China | GB/T 4171 | Q355NH | High-strength weathering steel; yield ≥ 355 MPa; similar corrosion resistance and weldability; equivalent in many applications. |
| International | ISO 4952 | S355W | Structural steel with improved atmospheric corrosion resistance; harmonizes with EN and other national standards; chemistry and mechanical properties align well. |
ASTM A588 Grade A Weathering Steel Coil Application Introduction
ASTM A588 Grade A steel coil is extensively used in exposed structural applications where long-term corrosion resistance without painting is desired, reducing maintenance costs. Its high strength-to-weight ratio permits lighter structures. Key application areas include
- Road and pedestrian bridges – main girders, bracing, and deck components
- Architectural building envelopes – facades, sun screens, and sculptural elements
- Electrical transmission and telecommunication towers
- Rolling stock and freight container frames
- Industrial equipment and outdoor machinery enclosures
The coil form is particularly suited for roll-forming, press braking, and automatic welding operations.
Product Applications: Bridge beams and trusses, Exterior cladding panels and louver systems, Poles for lighting, signals, and transmission lines, Container chassis and trailer frames, Grating and walkways, Storage tanks and silos for outdoor service
Processed into products: Welded I‑beams and H‑piles, Roll-formed purlins and girts, Shear studded composite bridge girders, Light pole base plates and mast arms, Box culvert sections, Crane runway beams
Application industries: Heavy civil engineering and infrastructure, Architecture and construction, Energy (power transmission, wind turbine towers), Transportation (rail, shipping), Industrial manufacturing
ASTM A588 Grade A Weathering Steel Coil Recommended Similar / Alternative Materials
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| USA | ASTM A242/A242M | Type 1 | Earlier weathering steel standard; slightly lower strength (min yield 50 ksi for plates ≤ 0.75 in.) and no deliberate vanadium addition; often considered precursor to A588. |
| USA | ASTM A709/A709M | Grade 50W | Bridge steel grade; identical mechanical requirements to A588 Gr. A but with mandatory Charpy impact testing for primary bridge members. |
| USA | ASTM A588/A588M | Grade B | Higher manganese content (0.75–1.35) and slightly different aluminum/silicon balance; similar strength; may be substituted with care for weldability. |
| European Union | EN 10025-5 | S355K2W | K2 notch toughness at -20°C; slightly higher yield; can replace Grade A when toughness in structural applications is critical; verify chemical compatibility. |
Notes:
Welding: ASTM A588 Grade A can be welded by all common processes (SMAW, GMAW, FCAW, SAW) using low-hydrogen practices and matching weather-resistant filler metals (e.g., AWS E80C-W). Preheating may be required for thick sections. Patina development: The protective oxide layer forms over 1–3 years of exposure to wet/dry cycles. Initial surface is bright, turning to a dark, stable brown. In marine or heavily industrial environments, periodic washing to remove chlorides aids uniform patina formation. Availability: Coil is standard in widths up to 72 in. and thicknesses from 0.060 in. to 0.500 in. Higher thicknesses are available as cut-to-length plates.
