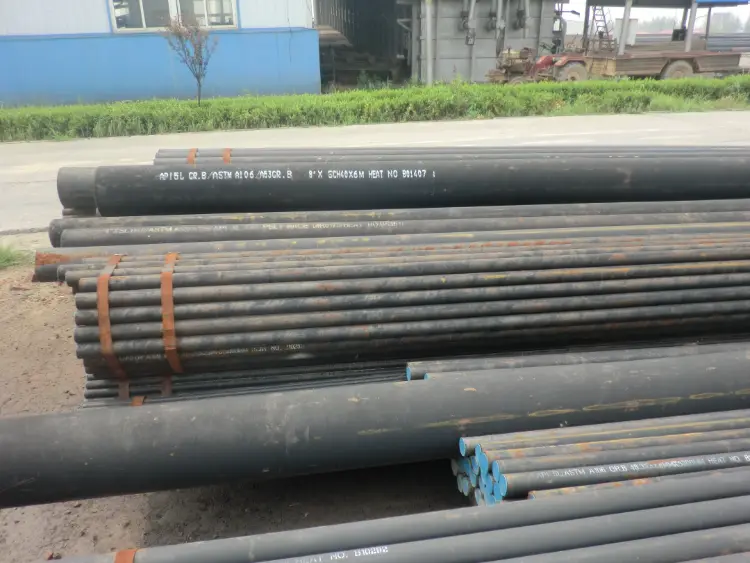

API 5L Grade B SSAW Pipe Material
API 5L Grade B SSAW Pipe: Comprehensive Material Data, Equivalents & Applications
Detailed material properties, chemical composition, mechanical and thermal data for API 5L Grade B steel used in SSAW pipes. Includes international equivalents, similar grades, and application guidance.
Spiral submerged arc welding (SSAW) from hot-rolled strip steel; may include expander sizing, hydrostatic testing, and non-destructive inspection
- Phone : +8618037372205
- Email : [email protected]
- WhatsApp: Contact via Whtsapp
- WeChat: +8618037372205
API 5L Grade B SSAW Pipe Introduction
API 5L Grade B is a carbon-manganese steel widely used for manufacturing spiral submerged arc welded (SSAW) pipes in oil, gas, and water transportation. As per API 5L 46th Edition, this grade corresponds to L245 in ISO 3183 and GB/T 9711 standards. The steel offers a minimum yield strength of 245 MPa (35.5 ksi) and good weldability, making it suitable for moderate-pressure pipelines. Typical delivery condition for SSAW pipes is as-welded, with optional hydrostatic testing and coating. The material exhibits good toughness at ambient temperatures and is often supplied in PSL1 or PSL2 specification levels depending on project requirements. Its balanced composition allows for reliable performance in both onshore and offshore pipeline systems.
API 5L Grade B SSAW Pipe Chemical Composition – API 5L Grade B SSAW Pipe
The chemical requirements for API 5L Grade B steel for welded pipe (SSAW) are as per API 5L Table 2 – PSL1 pipes. All values are maximum unless a range is given. Carbon equivalent is not mandatory for PSL1 but often limited to ensure good weldability.
| Element | Standard Value (max, wt%) | Remarks |
|---|---|---|
| Carbon (C) | 0.26 | For SSAW pipe (welded) |
| Manganese (Mn) | 1.20 | Max for PSL1 Grade B |
| Phosphorus (P) | 0.030 | Max |
| Sulfur (S) | 0.030 | Max |
| Niobium (Nb) | ≤ 0.05 | Optional microalloying element; if added shall comply with API 5L 9.2 |
| Vanadium (V) | ≤ 0.08 | Optional; combined Nb+V+Ti ≤ 0.15% |
| Titanium (Ti) | ≤ 0.04 | Optional; combined Nb+V+Ti ≤ 0.15% |
| CEIIW (Carbon Equivalent) | ≤ 0.43 (typical) | Not mandatory for PSL1 but often limited for weldability; typical supplier limit |
API 5L Grade B SSAW Pipe Thermal and Electrical Physical Properties – Carbon Steel Grade B
The following physical properties are approximate values for carbon-manganese steel typical of API 5L Grade B. They are not part of the API 5L standard but are commonly used in pipeline design calculations. Values may vary slightly depending on exact composition, temperature, and processing history.
| Property | Typical Value | Unit | Test Condition / Temperature |
|---|---|---|---|
| Density (ρ) | 7.85 | g/cm³ | At 20°C |
| Elastic Modulus (E) | 210 | GPa | At 20°C; linear elastic region |
| Shear Modulus (G) | 80 | GPa | At 20°C |
| Poisson's Ratio (ν) | 0.30 | – | At 20°C (elastic range) |
| Thermal Expansion Coefficient (α) | 11.7 | 10⁻⁶/K | 20°C to 100°C |
| Thermal Conductivity (λ) | 45 | W/(m·K) | At 20°C |
| Specific Heat Capacity (c) | 460 | J/(kg·K) | At 20°C |
| Electrical Resistivity (ρ_e) | 0.15 – 0.25 | µΩ·m | At 20°C; typical for mild carbon steel |
API 5L Grade B SSAW Pipe Mechanical Properties – API 5L Grade B SSAW Pipe
Mechanical properties are valid for pipe body of spiral welded pipe. Test specimens are taken transverse to the weld (for welded pipe). Minimum values are per API 5L, Table 3 (PSL1).
| Property | Standard Requirement | Unit | Test Condition |
|---|---|---|---|
| Yield Strength (ReH) | ≥ 245 (35.5) | MPa (ksi) | Transverse strip test, pipe body |
| Tensile Strength (Rm) | 415 - 655 (60.2 - 95.0) | MPa (ksi) | Transverse strip test, pipe body |
| Elongation (A) | ≥ 22 (calculated as per API 5L formula) | % | Gauge length 50 mm (2 in) rectangular specimen. Minimum A depends on cross-section area; typical value shown for common wall thickness. |
| Bend Test (No cracks) | Mandrel diameter 2.5 × t (wall thickness) for grade B | – | Bend angle 180°; no opening of weld. Applicable for welded pipe qualification only. |
API 5L Grade B SSAW Pipe Fully Equivalent Material Standards and Replaceable Grades
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| International (ISO) | ISO 3183:2019 | L245 | Same as API 5L Grade B for PSL1 and PSL2; directly interchangeable for welded pipes |
| China | GB/T 9711-2017 | L245 | Identical to API 5L Grade B; widely used for SSAW pipes |
| Europe | EN 10208-2:2009 | L245GA | Gas supply pipeline steel; equivalent for non-sour service |
| Russia | GOST 10705-80 | К34 (K34) | Approximate equivalent for similar carbon steel electric-welded pipes, but check mechanical properties |
| Italy | UNI 6363 | Fe 330 | Similar carbon steel pipe grade; often accepted for low-pressure applications |
API 5L Grade B SSAW Pipe Application Introduction
API 5L Grade B SSAW pipes are primarily intended for transporting oil, gas, and water in pipeline systems. Their good weldability and moderate strength make them suitable for low- and medium-pressure networks, distribution lines, and some structural applications. SSAW pipes are frequently chosen for projects requiring large diameters and long-run production efficiency.
Product Applications: Spiral submerged arc welded steel pipe (SSAW pipe), Line pipe for onshore and offshore pipelines, Casing and conductor pipes, Piling pipes for marine and foundation structures, Penstock pipes for hydropower stations, Structural hollow sections for heavy engineering
Processed into products: Main pipeline segments (12-meter lengths typical), Bends, elbows, and tees (fabricated from same grade pipe), Flanged connections and pup pieces, Welded pipe supports and hangers, Reducer and vent/ drain nozzles, Pump and compressor station piping connections
Application industries: Oil & Gas: upstream & midstream gathering lines, flowlines, transmission pipelines (non-sour service), Water & Wastewater: water mains, sewage force mains, desalination plants, Construction & Civil Engineering: piling pipes, structural columns, bridge casings, Chemical & Petrochemical: low-pressure process piping carrying non-corrosive fluents, Mining & Slurry Transport: tailings and slurry pipelines where abrasion resistance is not critical
API 5L Grade B SSAW Pipe Similar / Nearby Replacement Materials
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| USA | ASTM A53 / A53M | Grade B (Type E or S) | Seamless or ERW pipe; yield strength 240 MPa, slightly lower than API 5L B; acceptable for many structural and pressure applications |
| USA | ASTM A106 / A106M | Grade B | Seamless pipe for high-temperature service; min yield 240 MPa; often used for process piping |
| International (API) | API 5L | X42 (L290) | Higher strength grade, min yield 290 MPa; usable where higher pressure requires greater strength; weldability similar |
| China | GB/T 8163 | 20# steel | Seamless carbon steel for fluid transport; typical yield ~245 MPa, chemical composition different (C ≤0.24%) but performance close |
Notes:
PSL 2 availability: Grade B SSAW pipe can also be supplied to PSL2 requirements, which impose tighter chemical restrictions (C ≤0.24%, Mn ≤1.30%, P ≤0.025, S ≤0.015) and mandatory notch toughness testing. For sour service or low-temperature application, supplementary requirements (e.g., NACE MR0175 compliance) may be specified. Coating options: Common external coatings include 3-layer polyethylene (3LPE), fusion-bonded epoxy (FBE), and coal tar enamel. Internal linings like epoxy or cement mortar can be applied for corrosive fluids. Inspection: Standard API 5L requires 100% hydrostatic testing and NDT of weld seams (ultrasonic or radiographic).
