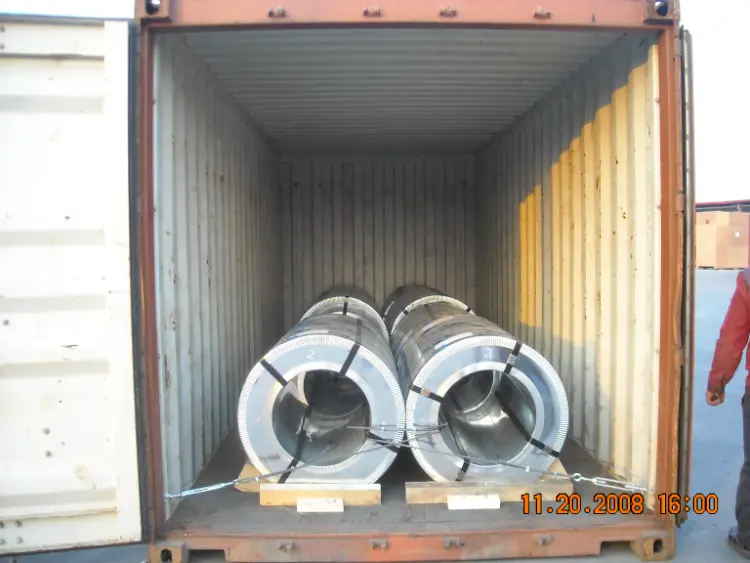

ASTM A242/A242M Type 1 Weather Resistant Steel Coil
ASTM A242/A242M Type 1 Weather Resistant Steel Coil - High-Strength Low-Alloy with Superior Atmospheric Corrosion Resistance
ASTM A242/A242M Type 1 is a copper-bearing high-strength low-alloy structural steel with enhanced atmospheric corrosion resistance, often used for architectural and structural applications exposed to the elements.
Hot Rolling, Cold Forming, Bending, Welding, Cutting, Punching
- Phone : +8618037372205
- Email : [email protected]
- WhatsApp: Contact via Whtsapp
- WeChat: +8618037372205
ASTM A242/A242M Type 1 Weather Resistant Steel Coil Introduction
ASTM A242/A242M Type 1 steel coil is a high-strength low-alloy (HSLA) structural steel specifically designed to provide significant resistance to atmospheric corrosion, approximately two to four times that of carbon steel, through the controlled addition of copper. As a weathering steel, it develops a tightly adherent protective oxide layer (patina) under alternate wet and dry cycles, which inhibits further corrosion, often eliminating the need for painting in many environments. This grade is supplied primarily as hot-rolled coil, suitable for bending, forming, and welding into structural components. It meets the mechanical properties required for structural applications, with a minimum yield strength of 345 MPa (50 ksi) and tensile strength of 480 MPa (70 ksi) for thinner sections. Key features:
- Atmospheric corrosion resistance superior to plain carbon steel
- High strength reduces weight and cost in design
- Weldable by standard methods
- Available in coil, plate, bar, and structural shapes
- Often used unpainted for a rustic aesthetic
ASTM A242/A242M Type 1 Weather Resistant Steel Coil Chemical Composition
Ladle analysis requirements per ASTM A242/A242M for Type 1. The copper content is the primary alloying element for atmospheric corrosion resistance. Other elements like nickel, chromium, and silicon may be present as residuals but are not specified in the standard. Maximum limits are given for carbon, manganese, phosphorus, and sulfur.
| Element | Standard Value (max or min) | Remarks |
|---|---|---|
| Carbon (C) | 0.15 max | Max |
| Manganese (Mn) | 1.00 max | Max |
| Phosphorus (P) | 0.15 max | Max (enhanced for weathering) |
| Sulfur (S) | 0.05 max | Max |
| Copper (Cu) | 0.20 min | Min (critical for corrosion resistance) |
ASTM A242/A242M Type 1 Weather Resistant Steel Coil Thermal and Electrical Physical Properties
Typical physical properties for ASTM A242 Type 1 weathering steel at room temperature unless otherwise noted. These values are characteristic of low-alloy steels and support engineering calculations for thermal expansion, heat transfer, and structural analysis. The protective oxide layer does not significantly alter these bulk properties.
| Property | Standard Requirement Value | Unit | Test Condition |
|---|---|---|---|
| Density (ρ) | 7.85 | g/cm³ | 20 °C |
| Elastic Modulus (E) | 200 | GPa | 20 °C |
| Shear Modulus (G) | 80 | GPa | 20 °C |
| Poisson's Ratio (ν) | 0.3 | ||
| Thermal Expansion Coefficient (α) | 12.0 | µm/(m·°C) | 0–100 °C |
| Thermal Conductivity (λ) | 50 | W/(m·K) | 20 °C |
| Specific Heat Capacity | 460 | J/(kg·°C) | 20 °C |
| Electrical Resistivity (ρ_e) | 0.15 | µΩ·m | 20 °C |
ASTM A242/A242M Type 1 Weather Resistant Steel Coil Mechanical Properties
Properties apply to hot-rolled products in the as-rolled condition. The values below are minimum requirements for plate and coil thickness ≤ 20 mm. For thicker sections, slightly reduced yield and tensile strengths may apply. Bend test must show no cracks or flaws on the outside of the bent portion. Impact toughness is not required unless specified by the purchaser.
| Property | Standard Requirement Value | Unit | Test Condition |
|---|---|---|---|
| Yield Strength (ReH) | 345 min | MPa | Plate thickness ≤ 20 mm |
| Tensile Strength (Rm) | 480 min | MPa | Plate thickness ≤ 20 mm |
| Elongation (A) | 21 min | % | Gauge length 50 mm, plate thickness ≤ 20 mm |
| Bend Test | No cracks; 180° bend, diameter 1.5t | t = nominal thickness, ≤ 20 mm |
ASTM A242/A242M Type 1 Weather Resistant Steel Coil Fully Equivalent Material Standards and Substitute Grades
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| USA | ASTM A242/A242M | Type 1 | Original specification; corresponds to US Steel Corten A |
| Europe | EN 10025-5 | S355J2WP (1.8946) | Comparative weathering steel with similar corrosion resistance and mechanical properties |
| Japan | JIS G3125 | SPA-C | High-phosphorus weathering steel used for similar outdoor applications |
| China | GB/T 4171 | Q355GNH | Weathering structural steel with minimum yield 355 MPa |
ASTM A242/A242M Type 1 Weather Resistant Steel Coil Application Introduction
ASTM A242 Type 1 weathering steel is ideal for outdoor structures exposed to the atmosphere without protective coatings, provided the design allows proper drainage and eliminates crevices. It is widely used in architecture for its natural brownish patina, in bridge construction for durability, and in transportation for weight savings and corrosion resistance.
Product Applications: Highway and pedestrian bridges, Building facades and cladding, Rolling stock (railway cars, chassis), Shipping containers, Storage silos and hoppers, Transmission towers and utility poles, Outdoor sculptures and landscape structures, Industrial ducting and pressure vessels (where corrosion allowance is sufficient)
Processed into products: Bridge beams, girders, and decks, Structural columns and bracing, Exterior architectural panels, louvers, and sunshades, Welded box structures and tubular frames, Support brackets and bolted connections, Rail car sides, roofs, and underframes, Container corner castings and panels
Application industries: Civil Engineering and Construction, Transportation (Rail, Marine, Road), Architecture and Building Envelopes, Energy and Industrial Equipment, Art and Sculpture
ASTM A242/A242M Type 1 Weather Resistant Steel Coil Similar / Alternative Material Recommendations
| Country/Region | Standard | Grade | Remarks |
|---|---|---|---|
| USA | ASTM A588/A588M | Grade A | Also known as Corten B; similar strength and weathering but with different alloying (Cr, V, Cu). Used when higher thickness or enhanced toughness is needed. |
| USA | ASTM A606/A606M | Type 4 | Weathering steel for sheet and strip, often with improved formability. |
| Europe | EN 10025-5 | S355J2W | Weathering steel with impact properties at -20°C; comparable corrosion resistance. |
| Japan | JIS G3125 | SPA-H | Similar high-weathering steel but with slightly different chemical composition; often used for containers. |
Notes:
Welding can be performed using common methods (SMAW, GMAW, SAW) with matching weathering steel electrodes (e.g., AWS E7018-W) to maintain color match and corrosion resistance. Preheating is generally not required for thin sections. The steel is not intended for use in aggressive chemical or marine immersion environments without additional protection. When painted, it offers extended coating life due to its inherent corrosion inhibition. Availability in coil form allows efficient roll-forming, bending, and stamping operations.
